Components [10/2014 - 07/2020]

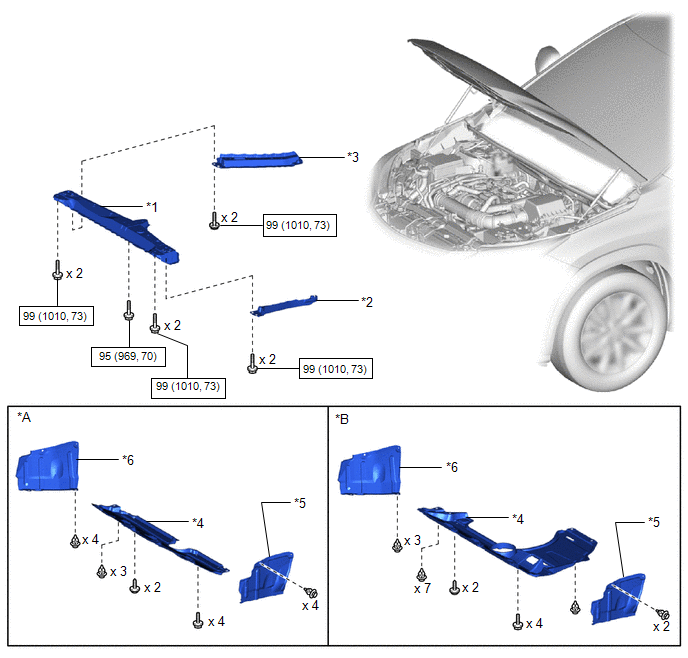

Fig 1: Compressor Replacement Components With Torque Specifications [10/2014 - 07/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except Sport Package	*B	for Sport Package
*1	FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY	*2	FRONT SUSPENSION MEMBER REINFORCEMENT LH
*3	FRONT SUSPENSION MEMBER REINFORCEMENT RH	*4	NO. 1 ENGINE UNDER COVER ASSEMBLY
*5	REAR ENGINE UNDER COVER LH	*6	REAR ENGINE UNDER COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

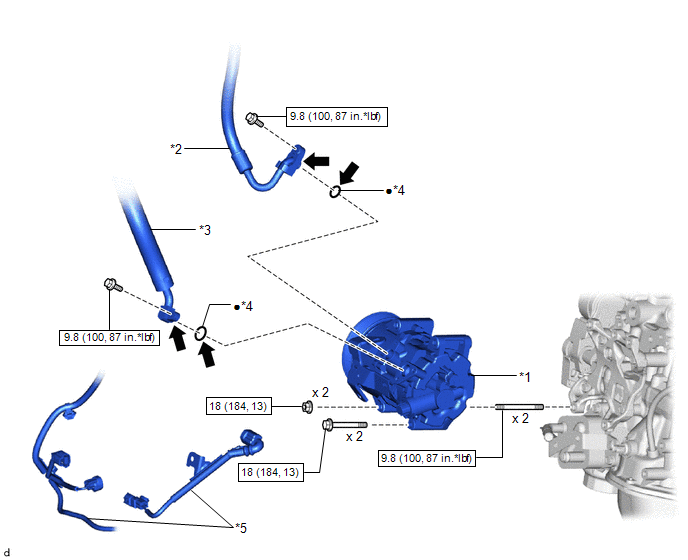

Fig 2: Compressor Replacement Components With Torque Specifications [10/2014 - 07/2020] (2 Of 2)

Callout	Description	Callout	Description
*1	COMPRESSOR ASSEMBLY WITH PULLEY	*2	DISCHARGE HOSE SUB-ASSEMBLY
*3	SUCTION HOSE SUB-ASSEMBLY	*4	O-RING
*5	WIRE HARNESS	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 8 or equivalent	-	-
