Components [10/2014 - ]

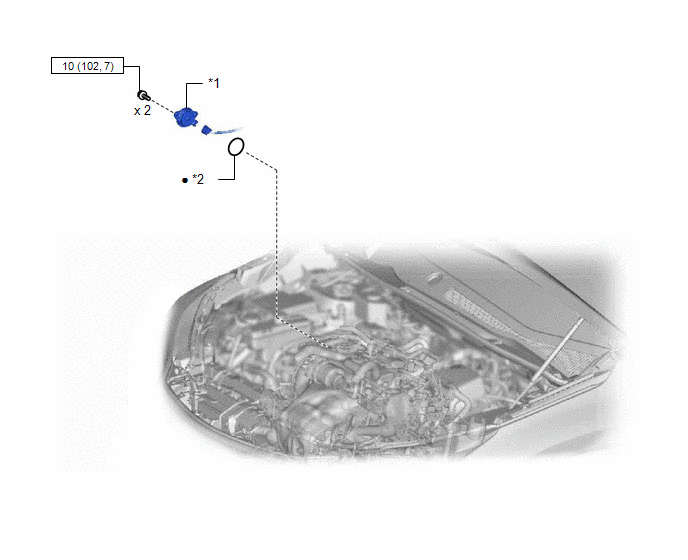

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications
GTY510941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY *2 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
