Components [10/2014 - ]

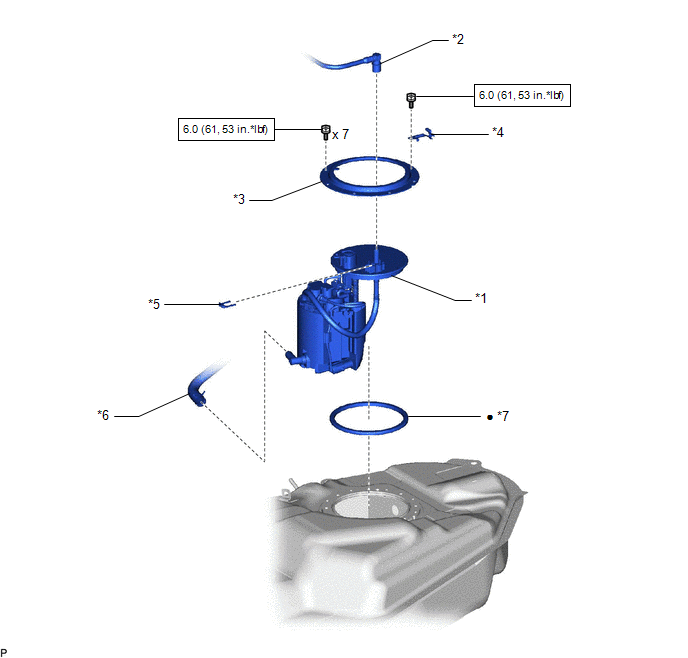

| Callout | Description | Callout | Description |
| *1 | FUEL SUCTION TUBE ASSEMBLY WITH PUMP | *2 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 | FUEL TANK VENT TUBE SET PLATE | *4 | NO. 1 FUEL TUBE CLAMP |
| *5 | TUBE JOINT CLIP | *6 | FUEL HOSE |
| *7 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

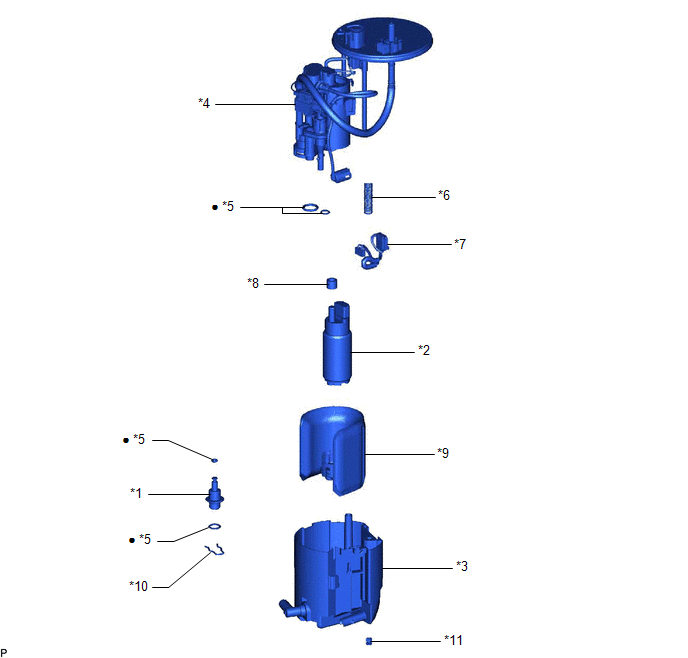

| Callout | Description | Callout | Description |
| *1 | FUEL MAIN VALVE ASSEMBLY | *2 | FUEL PUMP |
| *3 | NO. 1 FUEL SUB-TANK | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | O-RING | *6 | SPRING |
| *7 | FUEL PUMP HARNESS | *8 | FUEL PUMP SPACER |
| *9 | FUEL PUMP FILTER | *10 | NO. 2 FUEL SUCTION SUPPORT |
| *11 | SETTING HOLDER | - | - |
| • | Non-reusable part | - | - |
