Removal [10/2014 - 05/2019]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.
Refer to PRECAUTION [10/2014 - 09/2017] , or refer to PRECAUTION [09/2017 - 05/2019]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2014 - 09/2017] , or refer to INITIALIZATION [09/2017 - 05/2019]
- REMOVE AIR CONDITIONER UNIT ASSEMBLY
Refer to REMOVAL [10/2014 - 07/2020]

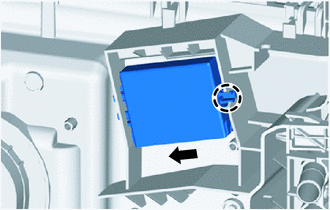

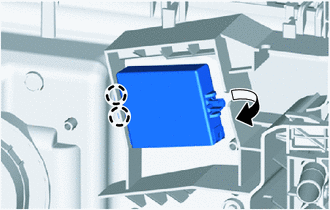

- REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)
