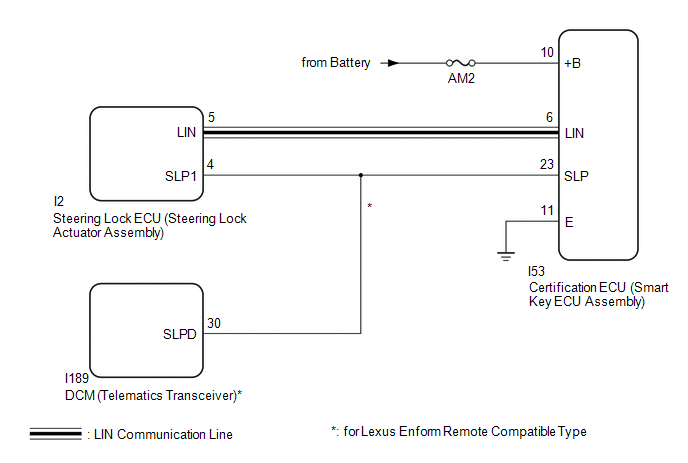

DTC B2285: Steering Lock Position Signal Circuit Malfunction [10/2019 - ]: Wiring Diagram

GTY949105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
