Inspection [09/2015 - ]: Procedure
- REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to REMOVAL [09/2015 - ]
- INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (CENTER DIFFERENTIAL LOCK SWITCH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (E) - 18 (CPU) Mode switch being pushed and held
(CTR DIFF)Below 1 Ω Mode switch not pushed

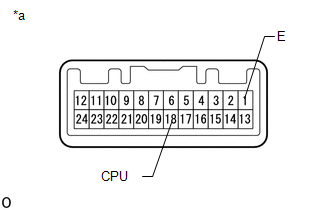

(CTR DIFF)10 kΩ or higher TEXT IN ILLUSTRATION* a Component without harness connected
(Integration Control and Panel Assembly)If the result is not as specified, replace the integration control and panel assembly.
- Measure the resistance according to the value(s) in the table below.
- INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to INSTALLATION [09/2015 - ]
