Removal [09/2015 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work. Refer to PRECAUTION [09/2015 - ] .
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [09/2015 - 08/2019] Refer to INITIALIZATION [08/2019 - ] .
- REMOVE FRONT DOOR SCUFF PLATE RH
Refer to PROCEDURE - Step 7 [09/2015 - 08/2018] Refer to PROCEDURE - Step 8 [08/2018 - ]
- REMOVE COWL SIDE TRIM BOARD RH
Refer to PROCEDURE - Step 29
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 27
- REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 2
- REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH
Refer to PROCEDURE - Step 24
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 10
- REMOVE INSTRUMENT PANEL BOX DOOR KNOB
Refer to PROCEDURE - Step 31
- REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 32
- REMOVE COWL SIDE JUNCTION BLOCK RH
Refer to PROCEDURE - Step 14

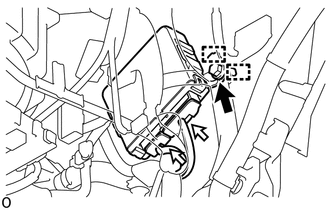

- REMOVE 4 WHEEL DRIVE CONTROL ECU
