Inspection [09/2015 - ]: Procedure

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	5.0 to 5.6 Ω

   TEXT IN ILLUSTRATION

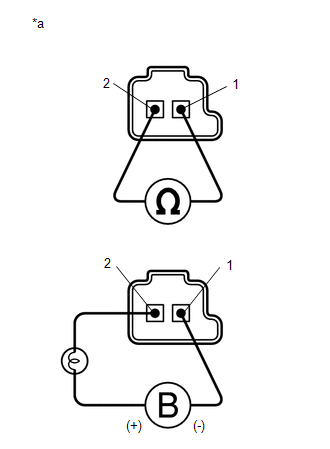

   *a	Component without harness connected (Shift Solenoid Valve SL1)

2. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the shift solenoid valve SL1 connector, then check the movement of the valve.

   OK

   The solenoid makes an operating sound.

   If the result is not as specified, replace the shift solenoid valve SL1.

HINT:

Refer to the procedures for the shift solenoid valve SL1.

HINT:

Refer to the procedures for the shift solenoid valve SL1.

HINT:

Refer to the procedures for the shift solenoid valve SL1.

HINT:

Refer to the procedures for the shift solenoid valve SL1.

HINT:

Refer to the procedures for the shift solenoid valve SL1.

HINT:

Refer to the procedures for the shift solenoid valve SL1.

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Shift solenoid valve SC1 connector terminal - Shift solenoid valve SC1 body	15 to 25°C (59 to 77°F)	11 to 15 Ω

   TEXT IN ILLUSTRATION

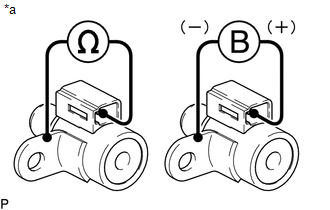

   *a	Component without harness connected (Shift Solenoid Valve SC1)

2. Connect the positive (+) lead to the terminal of the shift solenoid valve SC1 connector, and the negative (-) lead to the shift solenoid valve SC1 body.

   OK

   The solenoid makes an operating sound.

   If the result is not as specified, replace the shift solenoid valve SC1.

HINT:

Refer to the procedures for the shift solenoid valve SC1.
