Disassembly [09/2015 - ]: Procedure

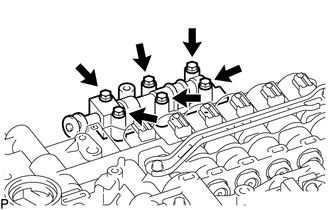

  1. REMOVE MANUAL VALVE BODY
    1. Remove the 6 bolts and manual valve body.
      GTY610213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

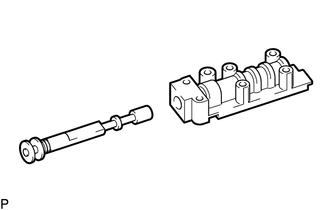

  2. REMOVE MANUAL VALVE
    1. Remove the manual valve from the manual valve body.
      GTY545173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

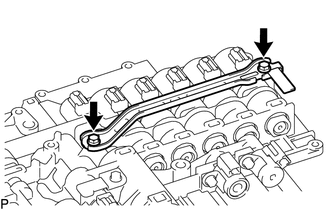

  3. REMOVE SOLENOID LOCK PLATE
    1. Remove the 2 bolts and solenoid lock plate.
      GTY595323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

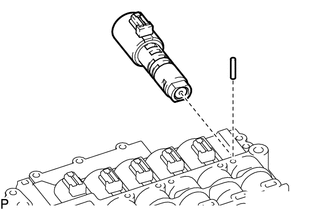

  4. REMOVE SHIFT SOLENOID VALVE SL3
    1. Remove the straight pin and shift solenoid valve SL3.
      GTY595320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

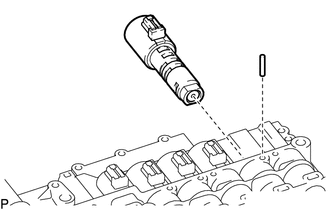

  5. REMOVE SHIFT SOLENOID VALVE SL5
    1. Remove the straight pin and shift solenoid valve SL5.
      GTY595347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

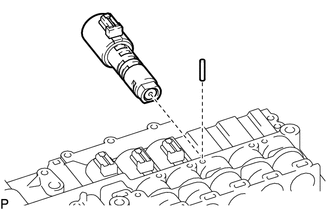

  6. REMOVE SHIFT SOLENOID VALVE SL2
    1. Remove the straight pin and shift solenoid valve SL2.
      GTY610219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

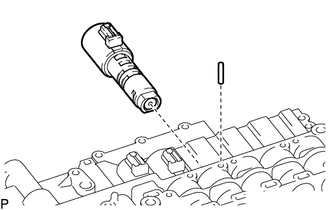

  7. REMOVE SHIFT SOLENOID VALVE SL4
    1. Remove the straight pin and shift solenoid valve SL4.
      GTY595348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

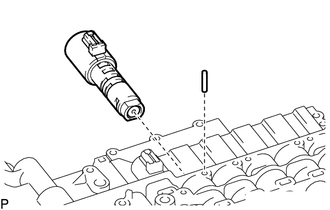

  8. REMOVE SHIFT SOLENOID VALVE SL1
    1. Remove the straight pin and shift solenoid valve SL1.
      GTY610220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

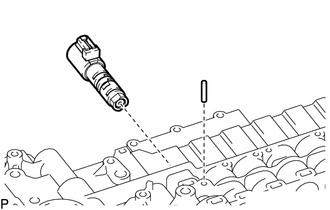

  9. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the straight pin and shift solenoid valve SLT.
      GTY595352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SHIFT SOLENOID VALVE SLU

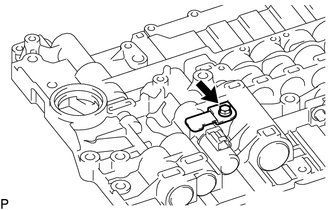

    1. Remove the bolt and solenoid lock plate.
      GTY595351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

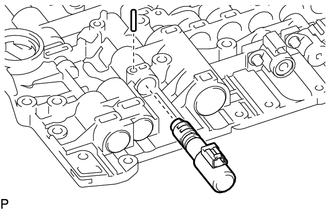

    2. Remove the straight pin and shift solenoid valve SLU.
      GTY595350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

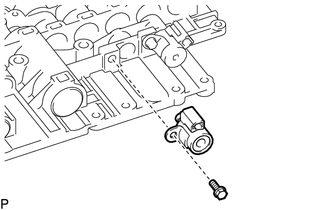

  11. REMOVE SHIFT SOLENOID VALVE SC2
    1. Remove the bolt and shift solenoid valve SC2.
      GTY595357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

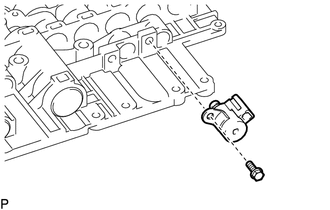

  12. REMOVE SHIFT SOLENOID VALVE SC1
    1. Remove the bolt and shift solenoid valve SC1.
      GTY595356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
