Components [09/2015 - ]

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

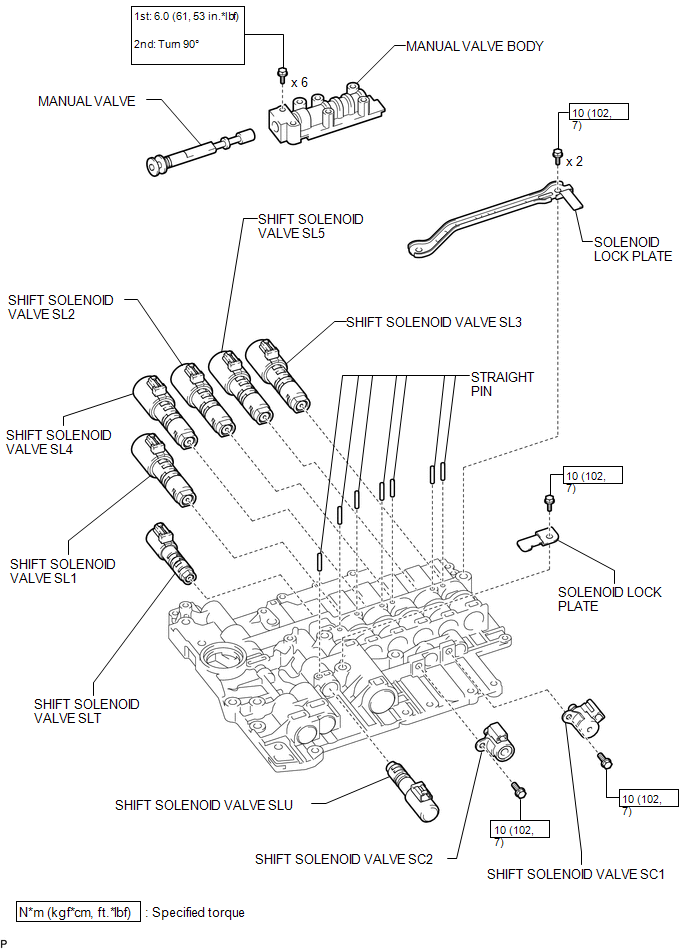

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)

Callout	Description	Callout	Description
*A	w/ Cover	-	-
*1	AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY	*2	TRANSMISSION VALVE BODY ASSEMBLY
*3	VALVE BODY OIL STRAINER ASSEMBLY	*4	TRANSMISSION WIRE
*5	LOCK PLATE	*6	TRANSMISSION CASE COVER
*7	AUTOMATIC TRANSMISSION OIL PAN GASKET	*8	TRANSMISSION OIL CLEANER MAGNET
*9	TRANSMISSION OIL PAN TUBE	*10	OVERFLOW PLUG
*11	O-RING	*12	GASKET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

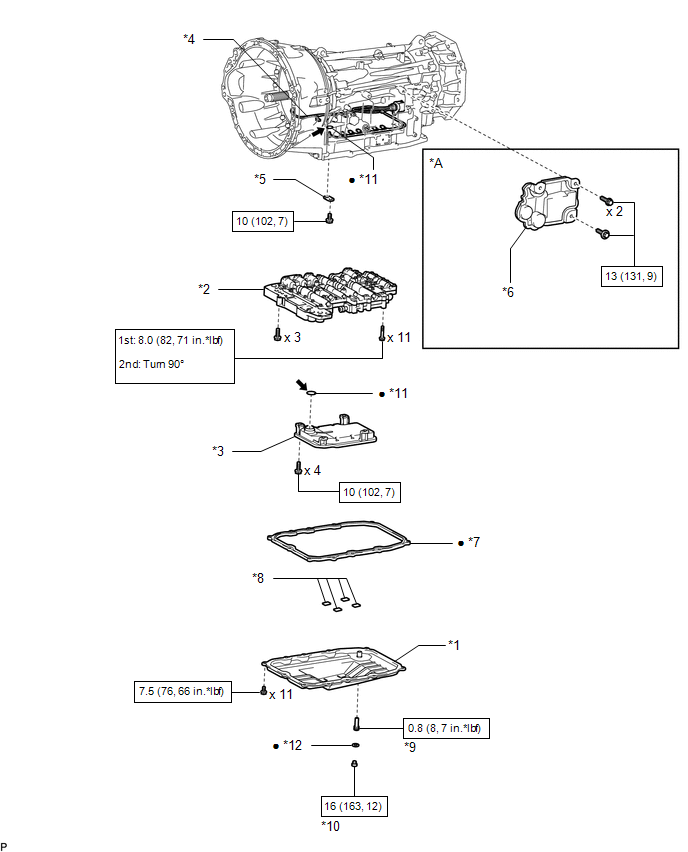

Fig 3: Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
