Installation [09/2015 - ]: Procedure

1. Coat the O-ring with ATF.
2. Install the transmission wire with the bolt.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

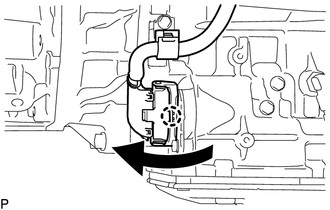

3. Connect the transmission wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Push up the lever until the claw of the transmission wire connector makes a connection sound.

4. Install the wire harness clamp with the bolt.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

5. Connect the connector to the transmission revolution sensor (SP2).

(Refer to INSTALLATION [09/2015 - ] )
