Components [09/2015 - ]

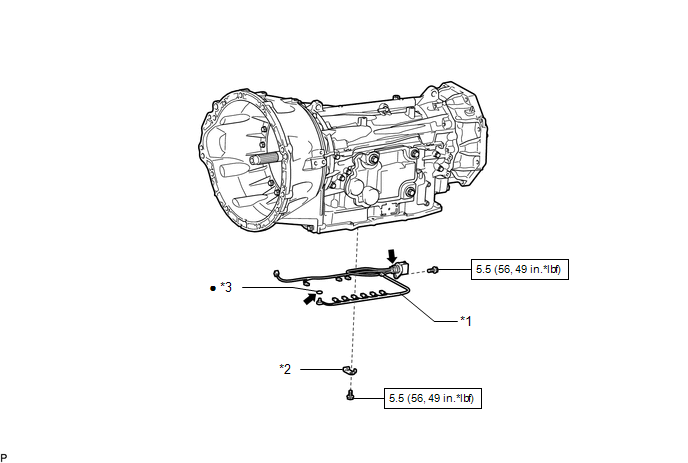

Fig 1: Transmission Wire Replacement Components With Torque Specifications
GTY745195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION WIRE *2 WIRE HARNESS CLAMP
*3 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -
