Removal [09/2015 - ]: Procedure

  1. REMOVE COWL SIDE JUNCTION BLOCK RH

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE TCM

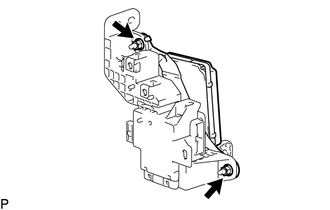

    1. Remove the 2 nuts and TCM from the cowl side junction block RH.
      GTY545176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
