Components [09/2015 - ]

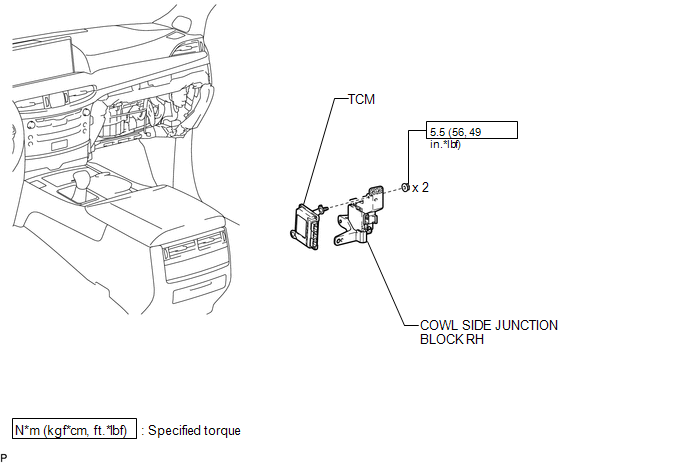

Fig 1: TCM Replacement Components With Torque Specifications

GTY628335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
