Removal [09/2015 - ]: Procedure

  1. REMOVE STEERING WHEEL ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

    (Refer to DISASSEMBLY [09/2015 - ] )

  3. REMOVE NO. 1 STEERING WHEEL BOSS COVER LOWER

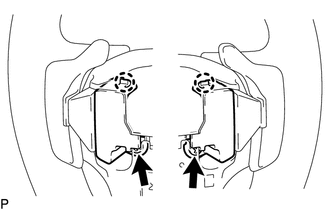

    1. Remove the 2 screws.
      GTY524078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the 2 No. 1 steering wheel boss cover lower.
  4. REMOVE TRANSMISSION SHIFT SWITCH ASSEMBLY

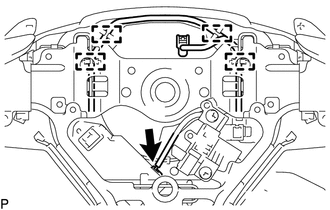

    1. Disconnect the connector and 4 clamps.
      GTY532554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

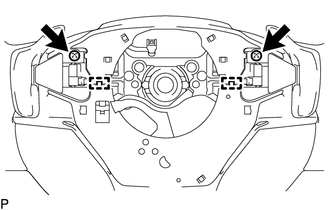

    2. Disconnect the 2 guides and remove the 2 screws.
      GTY524076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

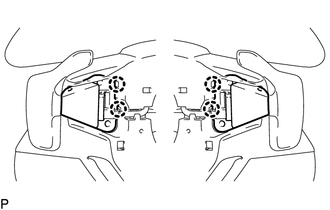

    3. Detach the 4 claws and remove the 2 transmission shift switch assemblies with No. 1 switch wire from the steering wheel assembly.
      GTY535931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 transmission shift switch assembly connectors to remove the No. 1 switch wire from the 2 transmission shift switch assemblies.
