Inspection [09/2015 - ]: Procedure

  1. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

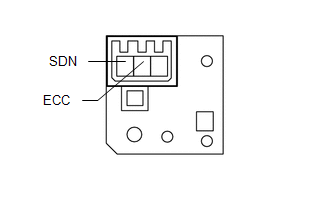

      GTY641332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Transmission Shift Switch Assembly LH

      Tester Connection Switch Condition Specified Condition
      SDN - ECC "-" shift paddle operated and held (down-shift) Below 2.5 Ω
      "-" shift paddle not operated (down-shift) 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Transmission Shift Switch Assembly LH)

      If the resistance values are not as specified, replace the transmission shift switch assembly LH.

    2. Measure the resistance according to the value(s) in the table below.

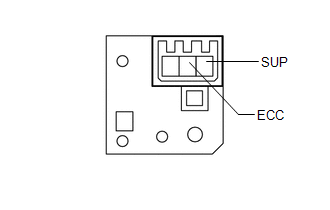

      GTY680571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Transmission Shift Switch Assembly RH

      Tester Connection Switch Condition Specified Condition
      SUP - ECC "+" shift paddle operated and held (up-shift) Below 2.5 Ω
      "+" shift paddle not operated (up-shift) 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Transmission Shift Switch Assembly RH)

      If the resistance values are not as specified, replace the transmission shift switch assembly RH.

  2. INSPECT NO. 1 SWITCH WIRE
    1. Disconnect the No. 1 switch wire connector from the steering pad switch assembly.
    2. Measure the resistance according to the value(s) in the table below.

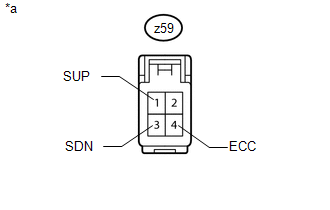

      GTY641696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      z59-3 (SDN) - z59-4 (ECC) "-" shift paddle operated and held (down-shift) Below 2.5 Ω
      "-" shift paddle not operated (down-shift) 1 MΩ or higher
      z59-1 (SUP) - z59-4 (ECC) "+" shift paddle operated and held (up-shift) Below 2.5 Ω
      "+" shift paddle not operated (up-shift) 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *a No. 1 Switch Wire
      (to Steering Pad Switch Assembly)

      If the resistance value is not as specified, replace the No. 1 switch wire.
