Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT CONSOLE BOX (w/ Cool Box)

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE FRONT CONSOLE BOX (w/o Cool Box)

    (Refer to REMOVAL [09/2015 - ] )

  3. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Move the shift lever to N.

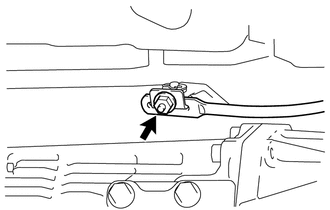

    2. Remove the nut and disconnect the floor shift gear shifting rod sub-assembly from the transmission floor shift assembly.
      GTY551494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

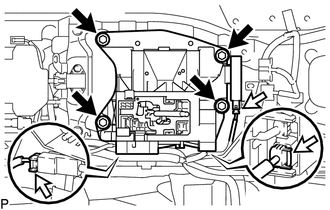

    1. Disconnect the 3 connectors.
      GTY674898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Bolt
      Connector
    2. Remove the 4 bolts and transmission floor shift assembly.
