Installation [09/2015 - ]: Procedure

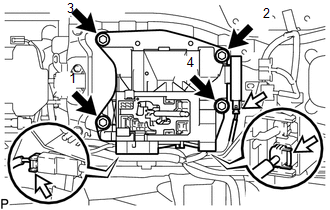

Fig 1: Transmission Floor Shift Assembly Bolts Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transmission floor shift assembly with the 4 bolts. Tighten the bolts in the order shown in the illustration.

   Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

   TEXT IN ILLUSTRATION



   	Bolt
   	Connector

2. Connect the 3 connectors.

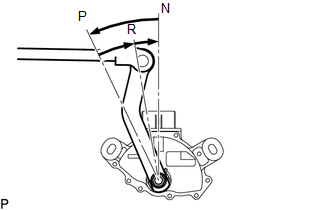

1. Turn the transmission control shaft lever RH of the park/neutral position switch counterclockwise until it stops, and then turn it clockwise 2 notches to set it to the N position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Move the shift lever to N.
3. Temporarily install the floor shift gear shifting rod sub-assembly to the transmission floor shift assembly with the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

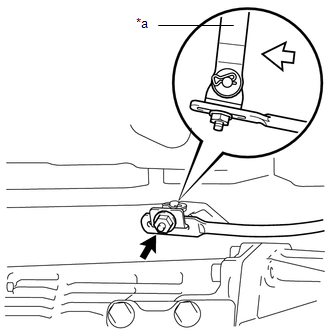

4. Tighten the nut while lightly pushing the lever rearward.

   Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

   TEXT IN ILLUSTRATION



   *a	Lever
   	Nut
   	Push

(Refer to INSTALLATION [09/2015 - ] )

(Refer to INSTALLATION [09/2015 - 08/2020] , or refer to INSTALLATION [08/2020 - ] )
