Disassembly [09/2015 - ]: Procedure

  1. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
    1. Disconnect the clamp and remove the No. 2 indoor electrical antenna assembly.
  2. REMOVE LOWER POSITION INDICATOR HOUSING
    1. Detach the 4 claws and remove the lower position indicator housing.

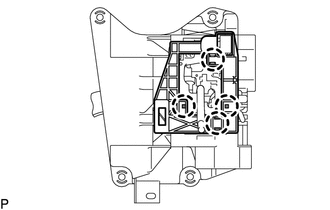

      GTY623419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
    1. Disconnect the shift lock solenoid connector.

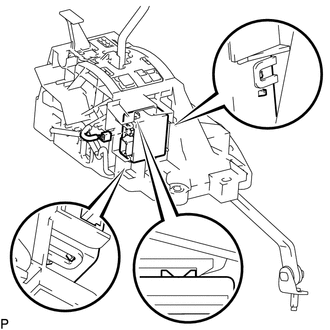

      GTY623420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 claws and remove the shift lock control ECU sub-assembly from the lower shift lever assembly.
