Components [09/2015 - ]

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
GTY543612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

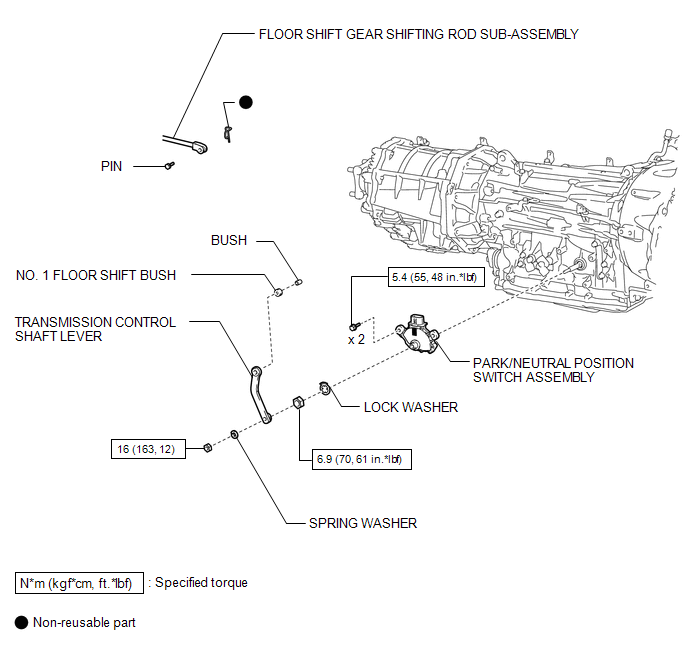

Fig 2: Park / Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
GTY557052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
