Components [09/2015 - ]

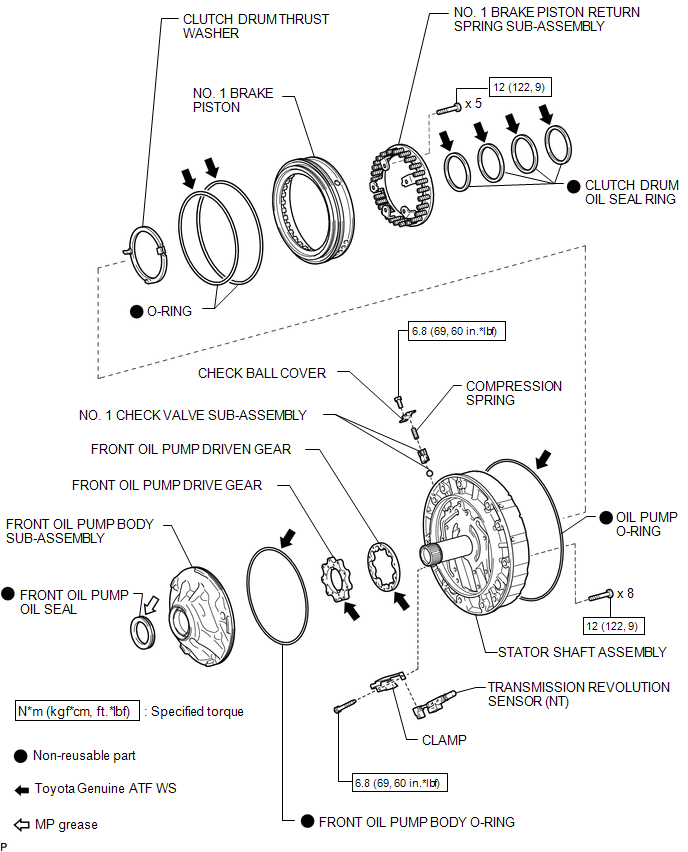

Fig 1: Oil Pump Replacement Components With Torque Specifications

GTY624561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
