Components [09/2015 - ]

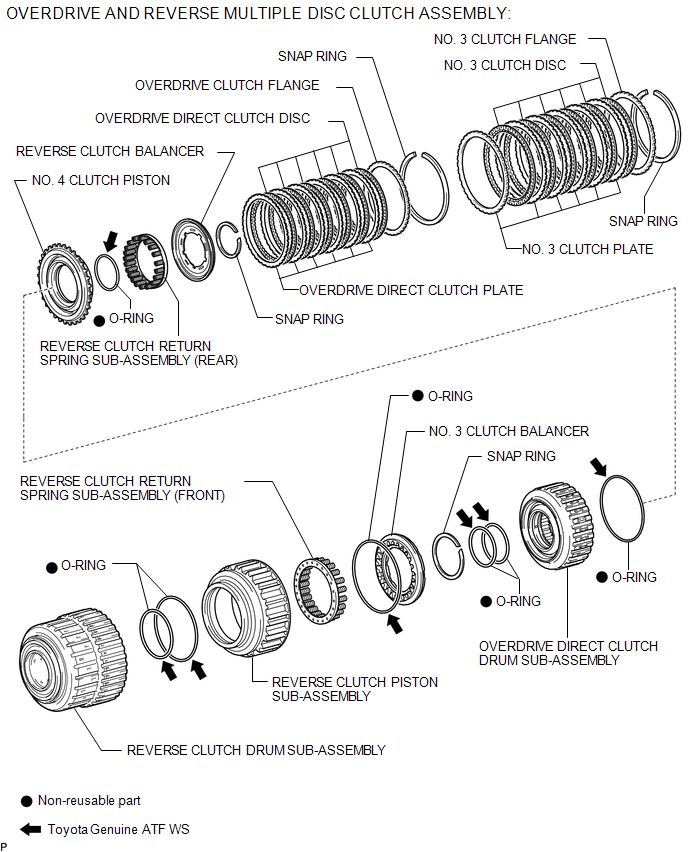

Fig 1: Automatic Transmission Unit Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

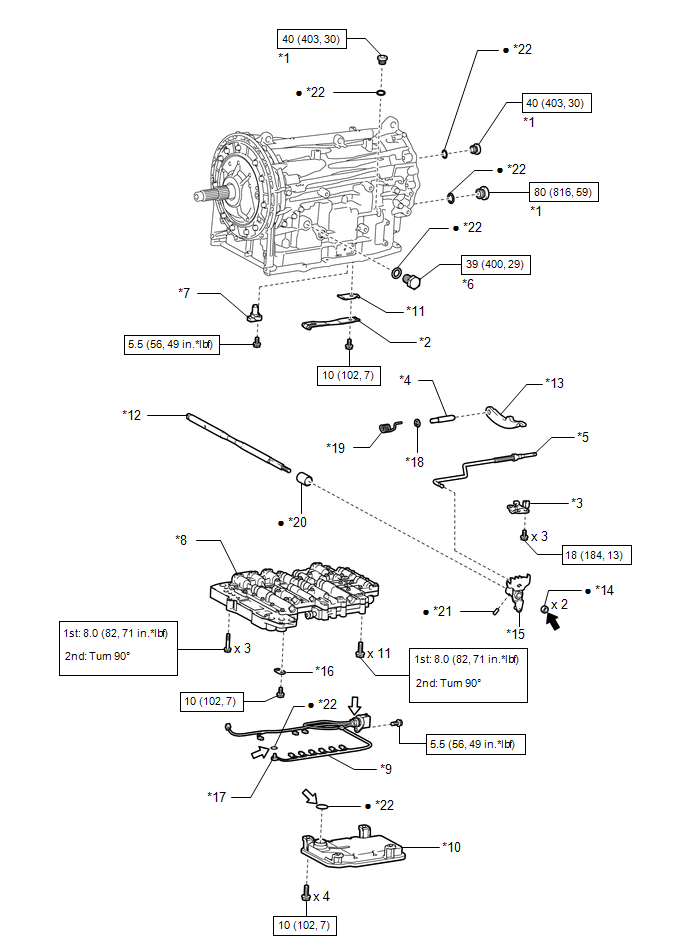

Fig 2: Automatic Transmission Unit Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AUTOMATIC TRANSMISSION CASE PLUG	*2	MANUAL DETENT SPRING SUB-ASSEMBLY
*3	PARKING LOCK PAWL BRACKET	*4	PARKING LOCK PAWL SHAFT
*5	PARKING LOCK ROD SUB-ASSEMBLY	*6	REFILL PLUG
*7	TRANSMISSION REVOLUTION SENSOR (SP2)	*8	TRANSMISSION VALVE BODY ASSEMBLY
*9	TRANSMISSION WIRE	*10	VALVE BODY OIL STRAINER ASSEMBLY
*11	MANUAL DETENT SPRING COVER	*12	MANUAL VALVE LEVER SHAFT
*13	PARKING LOCK PAWL	*14	MANUAL VALVE LEVER SHAFT OIL SEAL
*15	MANUAL VALVE LEVER SUB-ASSEMBLY	*16	LOCK PLATE
*17	ATF TEMPERATURE SENSOR	*18	E-RING
*19	SPRING	*20	SPACER
*21	SPRING PIN	*22	O-RING
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	MP Grease		Toyota Genuine ATF WS

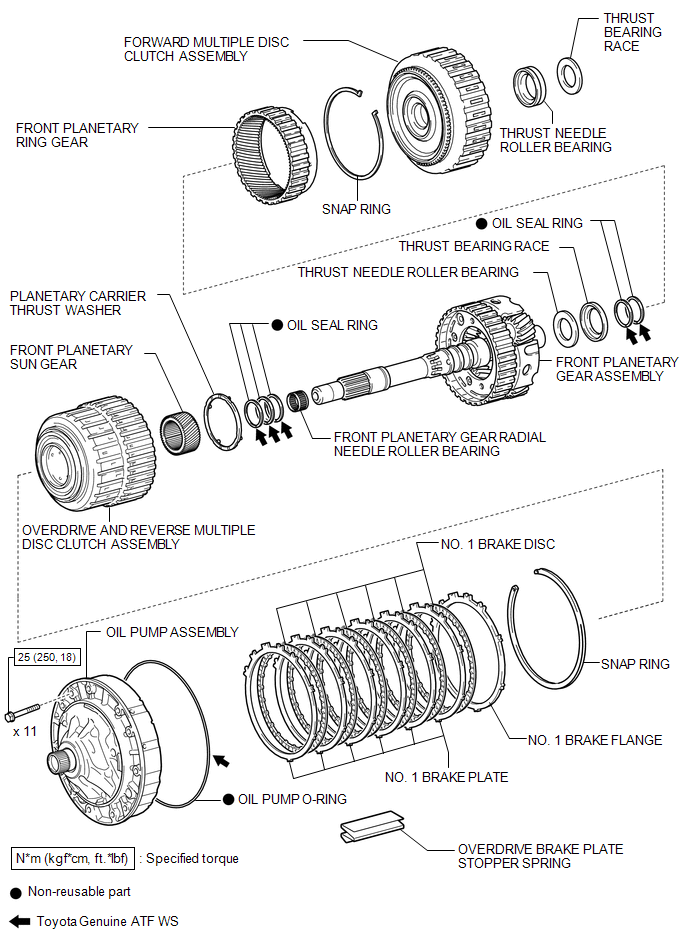

Fig 3: Automatic Transmission Unit Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

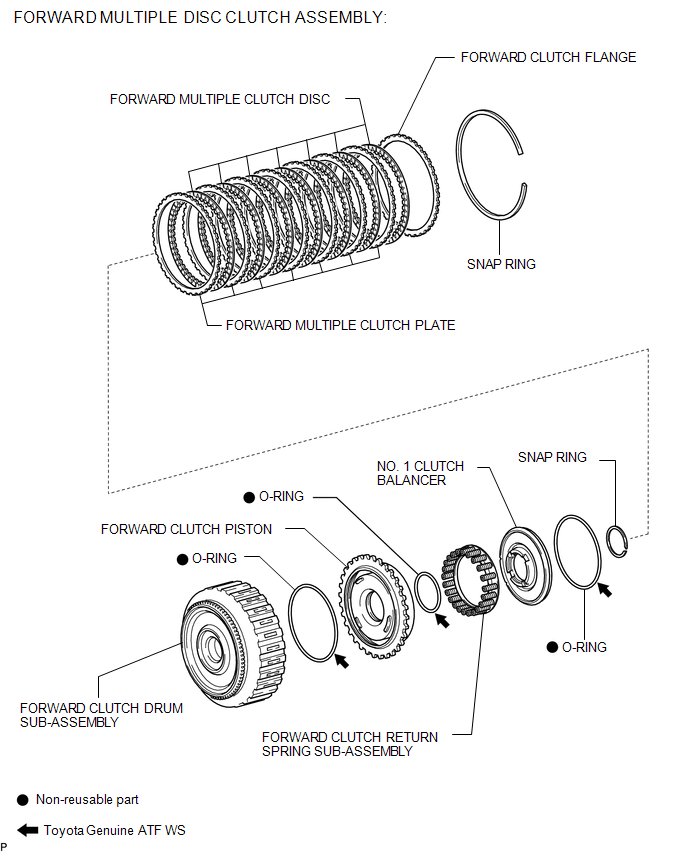

Fig 4: Automatic Transmission Unit Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

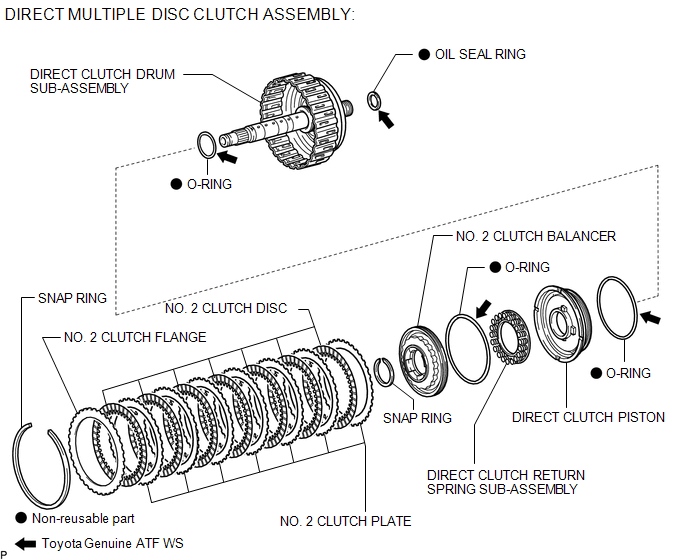

Fig 5: Automatic Transmission Unit Replacement Components With Torque Specifications (5 Of 8)

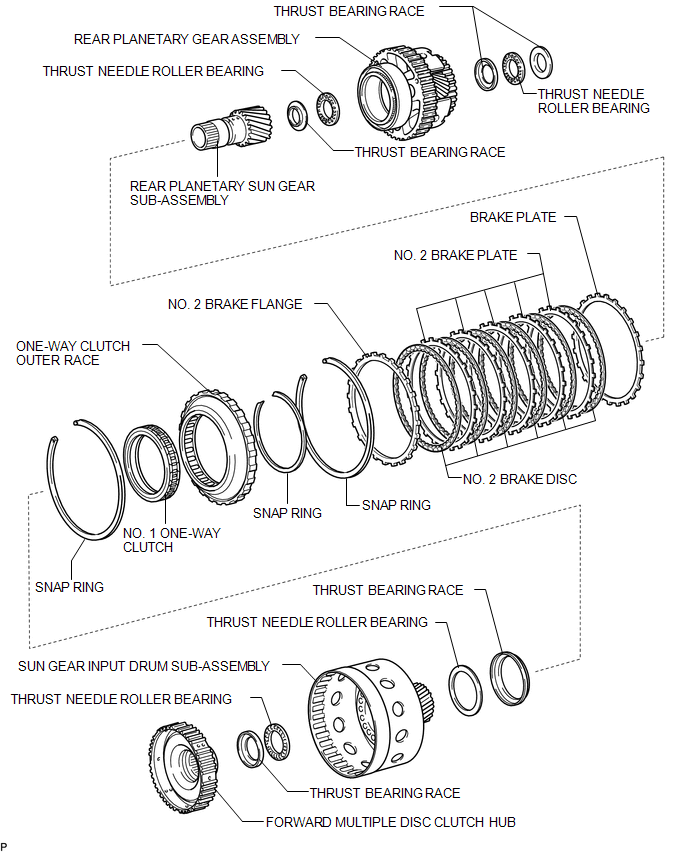

Fig 6: Automatic Transmission Unit Replacement Components (6 Of 8)

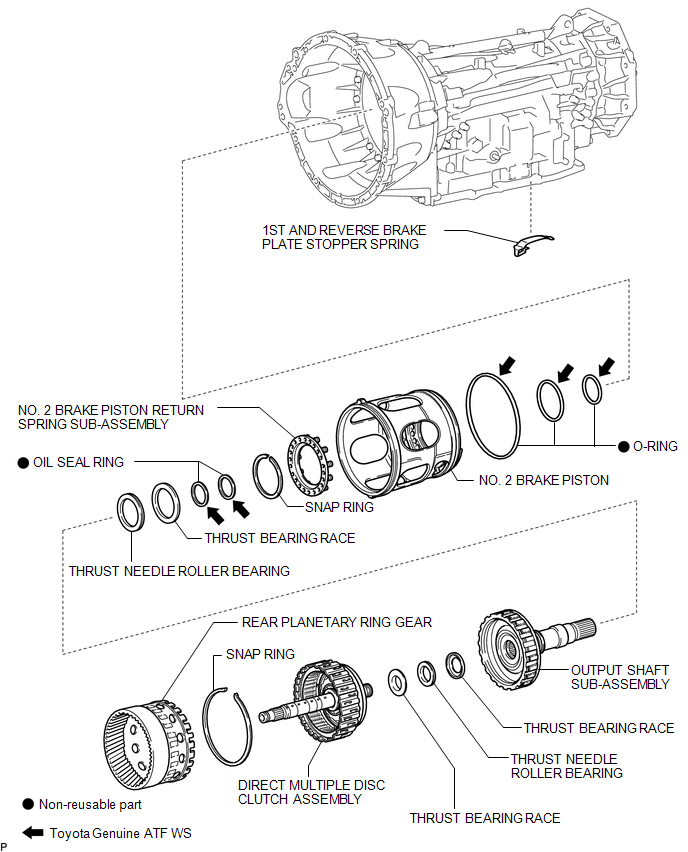

Fig 7: Automatic Transmission Unit Replacement Components With Torque Specifications (7 Of 8)

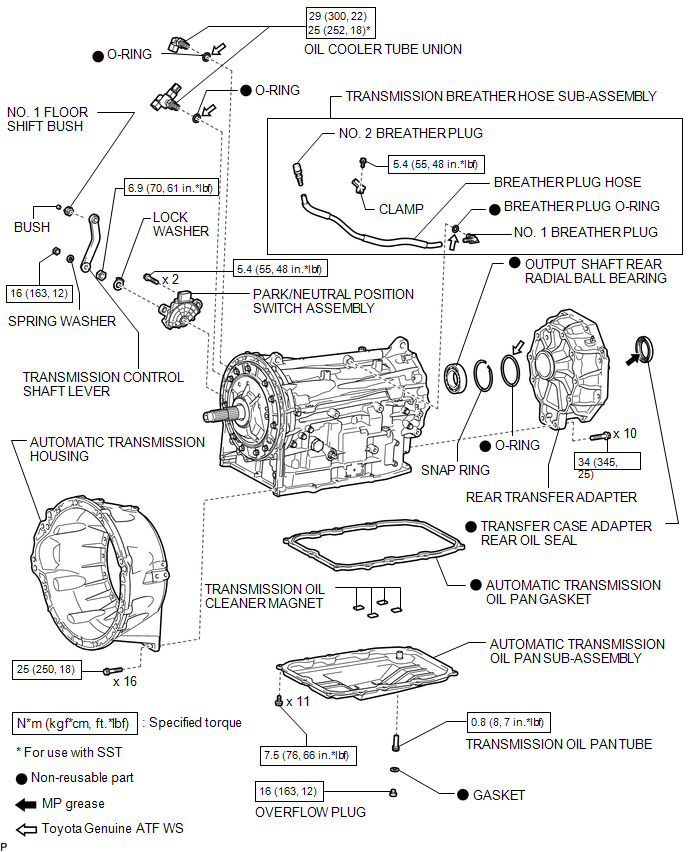

Fig 8: Automatic Transmission Unit Replacement Components With Torque Specifications (8 Of 8)
