Replacement [08/2020 - ]: Procedure

Refer to PROCEDURE - Step 5

See step  12

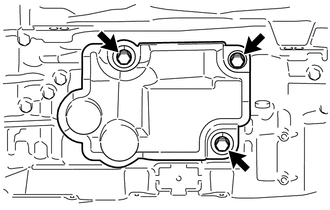

1. Remove the 3 bolts and transmission case cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Lift the vehicle. [*1]
   NOTE:

   Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure that the tilt angle from the front to rear of the vehicle is within +/-1°).

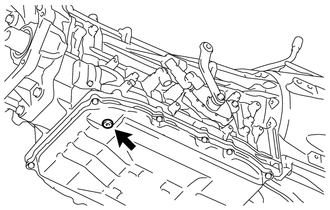

2. Using a 5 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transmission assembly and drain the automatic transmission fluid. [*2]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

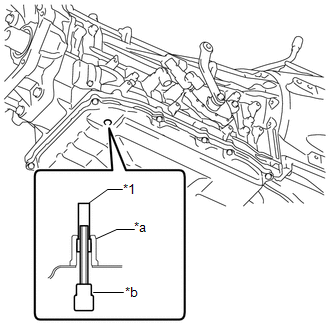

3. Using a 5 mm hexagon socket wrench, remove the transmission oil pan tube from the automatic transmission assembly and drain the automatic transmission fluid. [*3]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Transmission Oil Pan Tube
   *a	Overflow Plug Hole
   *b	5 mm Hexagon Socket Wrench

4. Using a 5 mm hexagon socket wrench, temporarily install the transmission oil pan tube to the automatic transmission assembly. [*4]

   Torque: 0.8 N*m (8 kgf*cm, 7 in.*lbf)

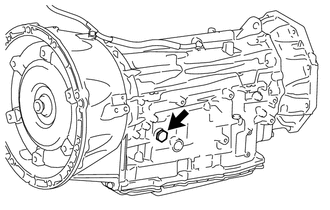

5. Remove the refill plug and O-ring from the automatic transmission assembly. [*5]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

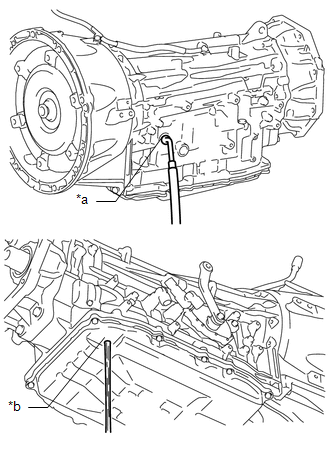

6. Add automatic transmission fluid to the refill hole until it flows out of the overflow hole. [*6]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Refill Hole
   *b	Overflow Hole

   NOTE:

   • Use Toyota Genuine ATF WS.

     Using transmission fluid other than the above type may cause abnormal noise or vibration, or damage the transmission of your vehicle.

   • Be sure to add automatic transmission fluid slowly. If automatic transmission fluid is added quickly, the automatic transmission fluid may hit internal parts and bounce back, resulting in automatic transmission fluid coming out of the refill hole.

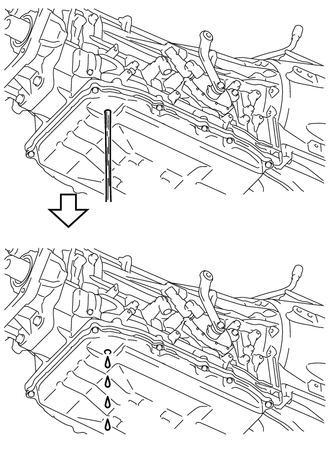

7. Wait until the automatic transmission fluid flow slows and only drips come out. [*7]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

8. Using a 5 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the automatic transmission assembly. [*8]

   HINT:

   Reuse the old gasket as the overflow plug will be removed again.

9. Add the amount of automatic transmission fluid specified for removal and installation of the automatic transmission oil pan sub-assembly to the refill hole. [*9]

   Specified Amount of Fluid

   2.7 liters (2.9 US qts, 2.4 Imp. qts)

   HINT:

   If the specified amount of automatic transmission fluid cannot be added, perform steps [*10] to [*16].

10. Temporarily install the O-ring and refill plug to the automatic transmission assembly. [*10]

    HINT:

    Reuse the old O-ring as the refill plug will be removed again.

11. Lower the vehicle. [*11]
12. Depress and hold the brake pedal. [*12]
13. Start the engine. [*13]
    NOTE:

    To reduce load, make sure that all electrical systems, such as the air conditioning, lighting system, electric fan and audio system, are off.

14. Slowly move the shift lever from P to D, and then move the shift lever to P. [*14]
15. Allow the engine to idle for 30 seconds to warm it up. [*15]
16. Turn the engine switch off. [*16]
17. Repeat steps [*1] to [*16].
18. Repeat steps [*1] to [*3].
19. Using a 5 mm hexagon socket wrench, install the transmission oil pan tube to the automatic transmission assembly.

    Torque: 0.8 N*m (8 kgf*cm, 7 in.*lbf)

20. Repeat steps [*5] to [*11].
21. Adjust the fluid level (Refer to ADJUSTMENT [08/2020 - ] ).
22. Lower the vehicle.
23. Operation is completed.

1. Install the transmission case cover with the 3 bolts.

   Torque: 13 N*m (131 kgf*cm, 9 ft.*lbf)

See step  31

Refer to PROCEDURE - Step 18
