Removal [09/2015 - ]: Procedure

  1. REMOVE TEMPERATURE SENSOR

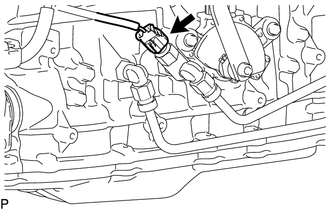

    1. GTY595345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the temperature sensor connector.

    2. Using a 19 mm deep socket wrench, remove the temperature sensor.
