Components [08/2020 - ]

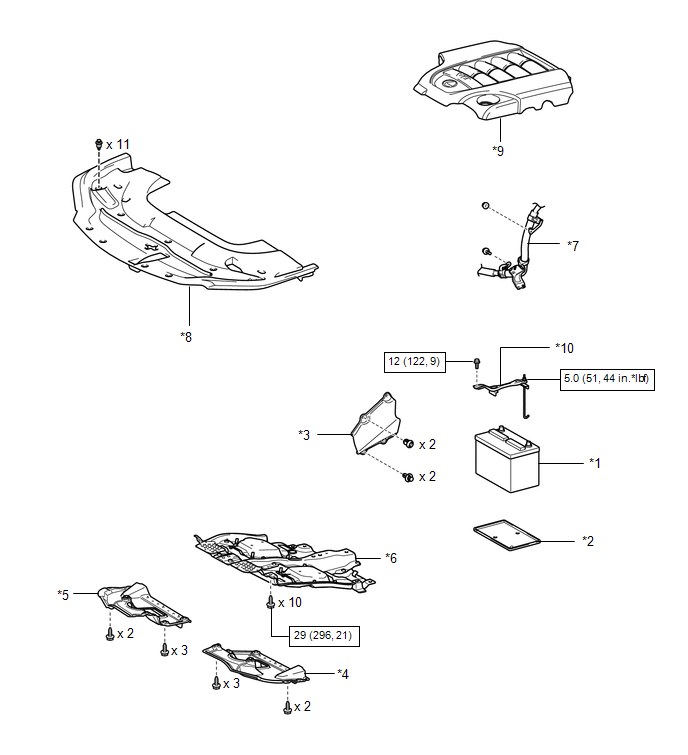

Fig 1: Compressor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY	*2	BATTERY TRAY
*3	FRONT FENDER APRON TRIM PACKING B	*4	FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
*5	FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH	*6	NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
*7	NO. 2 ENGINE WIRE	*8	UPPER RADIATOR SUPPORT SEAL
*9	V-BANK COVER SUB-ASSEMBLY	*10	BATTERY CLANP SUB-ASEEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

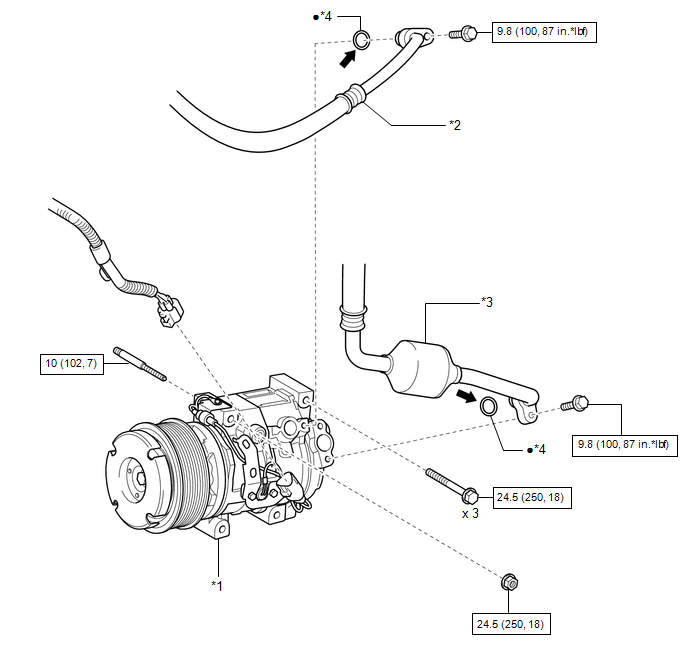

Fig 2: Compressor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COOLER COMPRESSOR ASSEMBLY	*2	NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
*3	SUCTION HOSE SUB-ASSEMBLY	*4	O-RING
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 12 or equivalent	-	-

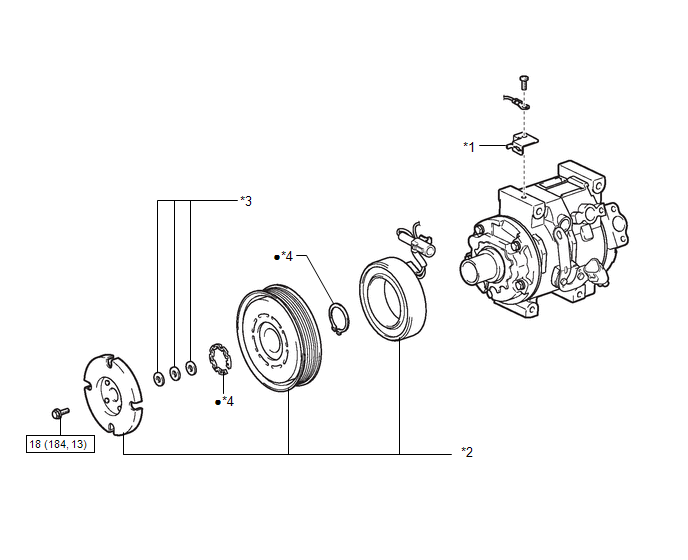

Fig 3: Compressor Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	COOLER BRACKET	*2	MAGNET CLUTCH ASSEMBLY
*3	MAGNET CLUTCH WASHER	*4	SNAP RING
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
