Removal [09/2015 - ]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 5

  2. REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR
    1. Remove the 2 bolts and sensor protector.
      GTY570843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CRANKSHAFT POSITION SENSOR

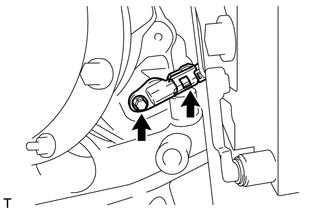

    GTY570842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
