Components [09/2015 - ]

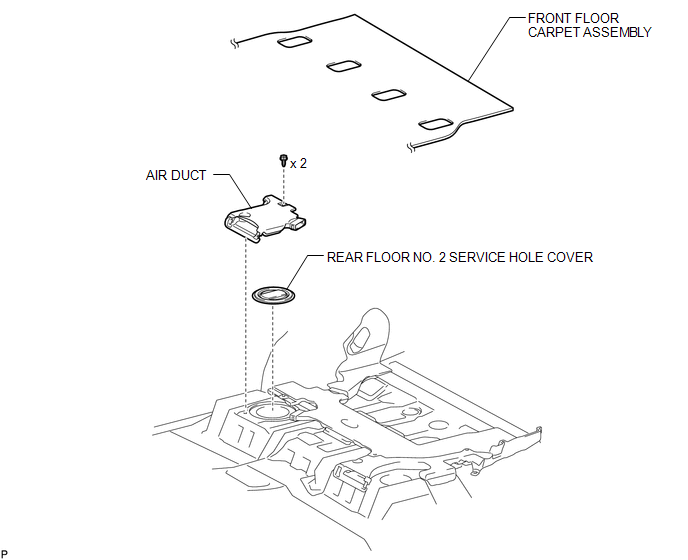

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY130703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

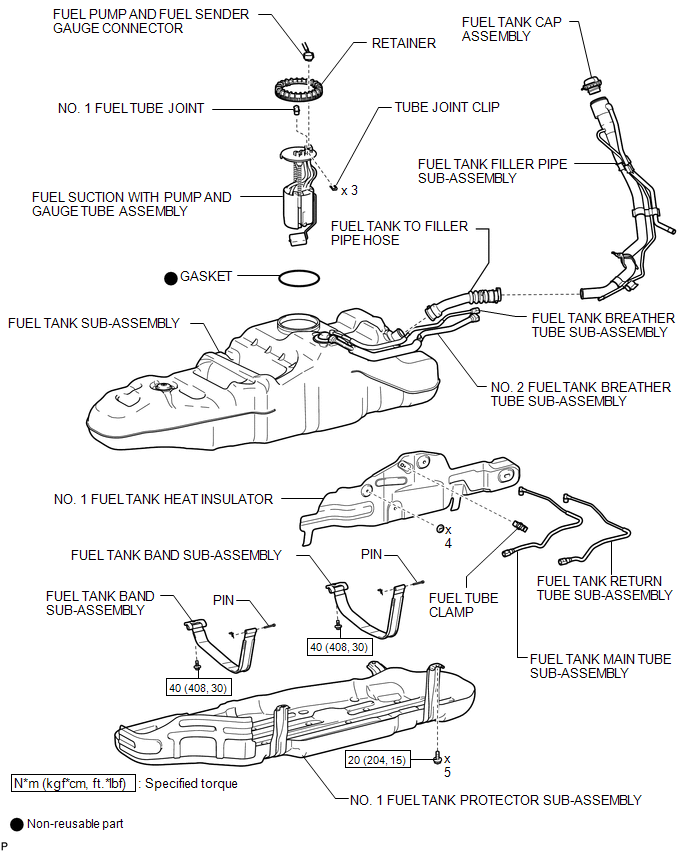

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
GTY658021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
