Removal [09/2015 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  2. REMOVE ENGINE SWITCH

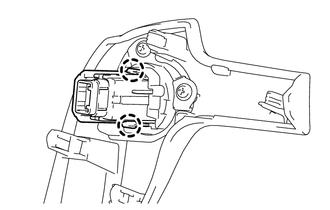

    1. Detach the 2 claws and remove the engine switch from the lower instrument panel pad sub-assembly.
      GTY678223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
