Installation [09/2015 - ]: Procedure

  1. INSTALL ID CODE BOX

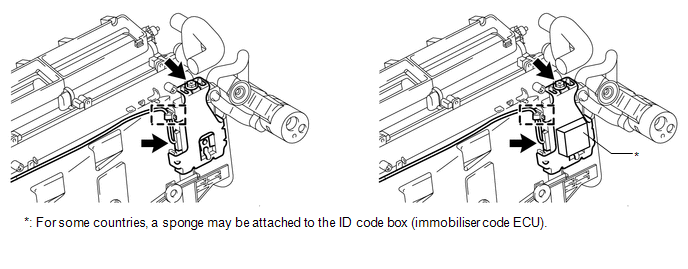

    1. Connect the connector and attach the clamp.
    2. Install the ID code box (immobilizer code ECU) with the screw.
      GTY685914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CONDITIONING UNIT
    1. Install the air conditioning unit. Refer to INSTALLATION [09/2015 - 08/2020] , or refer to INSTALLATION [08/2020 - ] .
  3. REGISTER ECU CODE
    1. Register the ECU code. Refer to REGISTRATION [09/2015 - 08/2020] , or refer to REGISTRATION [08/2020 - ] .
