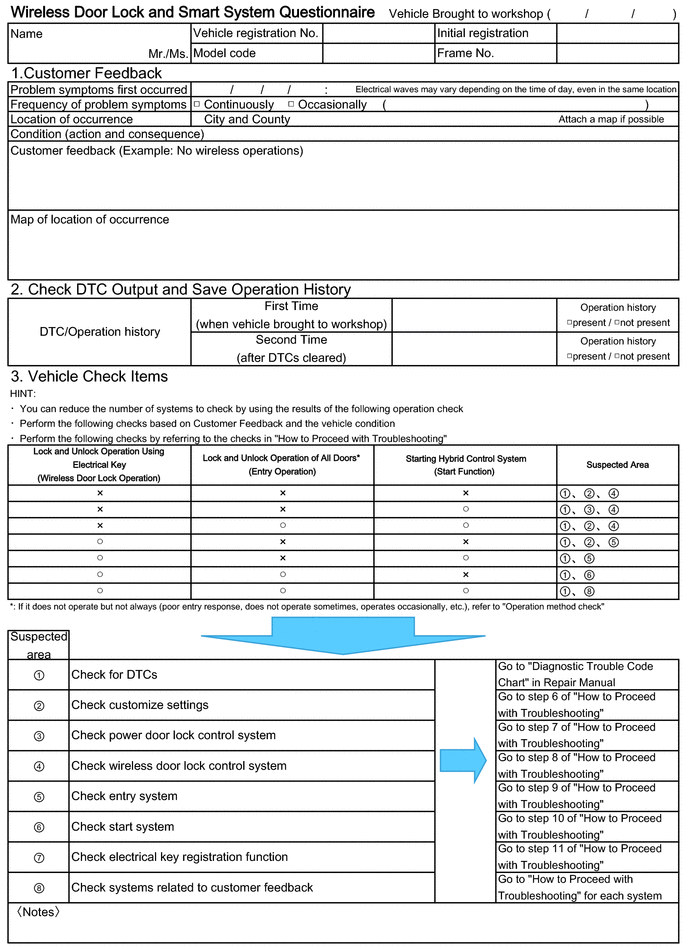

Customer Problem Analysis Check [10/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Be sure to ask the customer in detail about the following points concerning the vehicle operating conditions, environment and problem, and then check for DTCs.

• If the entry unlock function does not operate.
• If the power source mode does not change even though the power switch was pressed (does not change to ACC).
• If the entry lock function does not operate.
• If the entry lock/unlock function does not operate for all doors.
• If both the entry lock and unlock functions do not operate.
• If the wireless lock and unlock functions do not operate.
• If the hybrid control system cannot be started the push-button start function.
• If a hybrid control system start was attempted by holding the electrical key transmitter sub-assembly near the power switch and then pressing the power switch.
• If the warning buzzers inside the vehicle do not sound.
• If the warning buzzers outside the vehicle do not sound.

If it is suspected that wave interference is likely, be sure to ask the customer in detail about the following points concerning the vehicle operating conditions, environment and problem.

• Specific locations where the system does not operate (such as near TV towers, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc.).
• Specific times when the system does not operate.
• If the symptoms occurred immediately after purchase or only recently.
• If the system does not operate only when near specific vehicles (there may be wave interference from the wireless systems of other vehicles).
• If the system operates intermittently.
• If the electrical key transmitter sub-assembly is bundled together with other items.
• If the electrical key transmitter sub-assembly is carried together with other electronic devices, such as cell phones, personal computers, portable music players, other electrical key transmitter sub-assemblies, etc. (make sure to keep the electrical key transmitter sub-assembly at least 0.1 m (0.328 ft.) away from such items).
• Where the electrical key transmitter sub-assembly is being kept when not in use: If the electrical key transmitter sub-assembly is being placed within 1 m (3.28 ft.) of items such as TVs, DVD recorders, induction cookers, rice cookers, dishwashers, modems, cell phones, personal computers, microwave ovens, desk or floor lamps, cordless telephones, etc.
• If there are electronic devices that transmit radio waves placed in the vehicle.
• When the transmitter battery was last replaced. The transmitter battery capacity can be approximated using the Key Low Battery Data List item.

  Refer to DATA LIST / ACTIVE TEST [10/2023 - ]

• If the customer installed any optional components (theft deterrent devices, wireless fog lights, etc.) to the vehicle.
