Inspection [10/2017 - ]: Procedure
- INSPECT PCV VALVE WARNING:

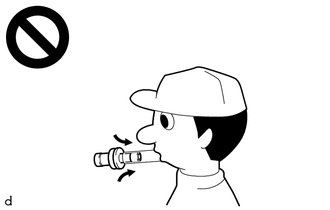

- When inspecting the PCV valve, do not suck air through the valve.
- There are blow-by gas substances remaining inside the PCV valve that are harmful to inhale.
- Install a hose to the PCV valve.
- Check PCV valve operation.
- Blow air into the cylinder head cover sub-assembly LH side, and check that air passes through easily.
*a Hose *b Air Cylinder Head Cover Sub-assembly LH Side WARNING:Do not suck air through the PCV valve. Petroleum substances inside the PCV valve are hazardous to your health.
If the result is not as specified, replace the PCV valve.
- Blow air into the intake air surge tank assembly side, and check that air passes through with difficulty.
*a Hose *b Air Intake Air Surge Tank Assembly Side WARNING:Do not suck air through the PCV valve. Petroleum substances inside the PCV valve are hazardous to your health.
If the result is not as specified, replace the PCV valve.
- Blow air into the cylinder head cover sub-assembly LH side, and check that air passes through easily.
- Remove the hose from the PCV valve.
