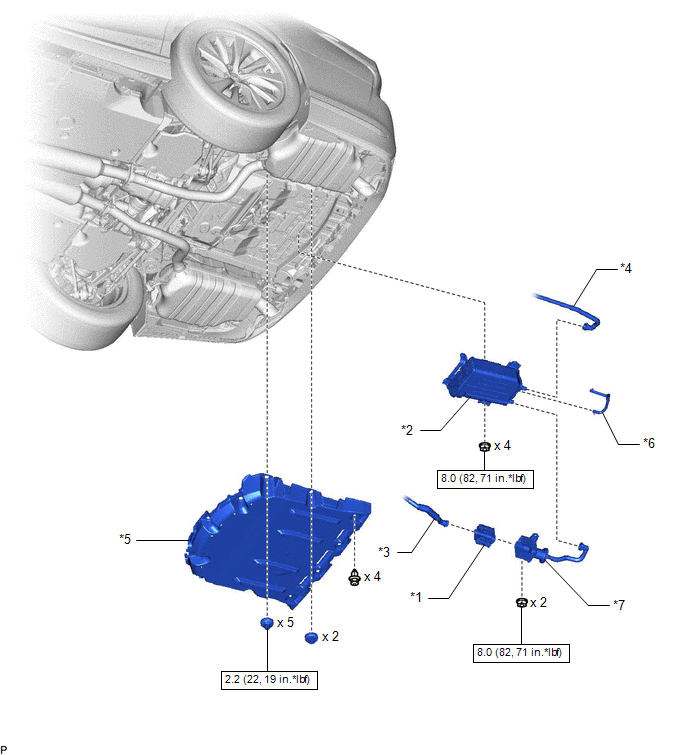

Components [10/2017 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CANISTER PUMP MODULE | *2 | CHARCOAL CANISTER ASSEMBLY |
| *3 | CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY | *4 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 | NO. 1 FLOOR UNDER COVER | *6 | PURGE LINE HOSE |
| *7 | FILTER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
