DTC C1711: Front Height Control Sensor RH Circuit Malfunction; DTC C1712: Front Height Control Sensor LH Circuit Malfunction; DTC C1713: Rear Height Control Sensor RH Circuit Malfunction; DTC C1714: Rear Height Control Sensor LH Circuit Malfunction [10/2017 - 10/2020]: Wiring Diagram

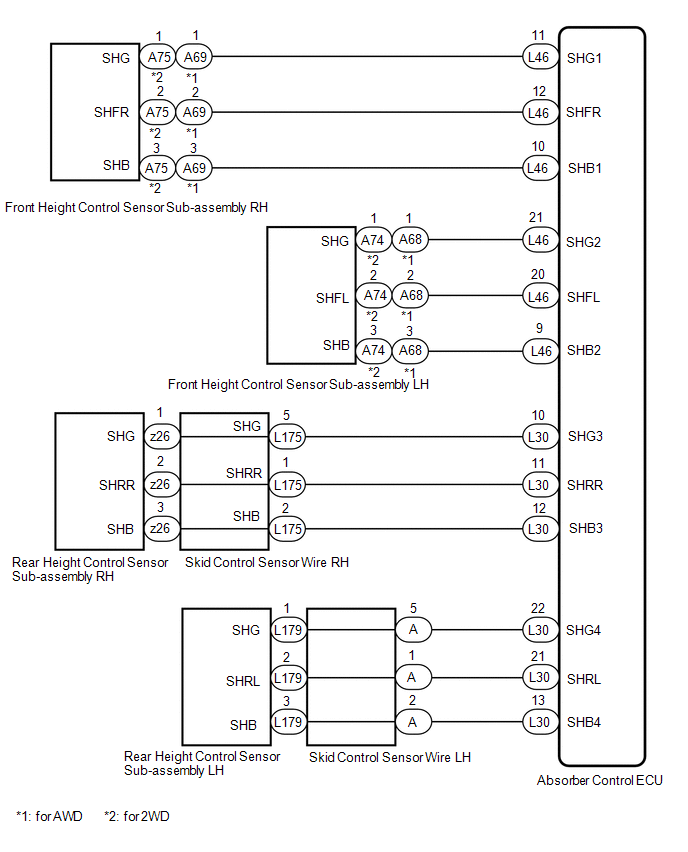

w/o Air Suspension System:

GTY828629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

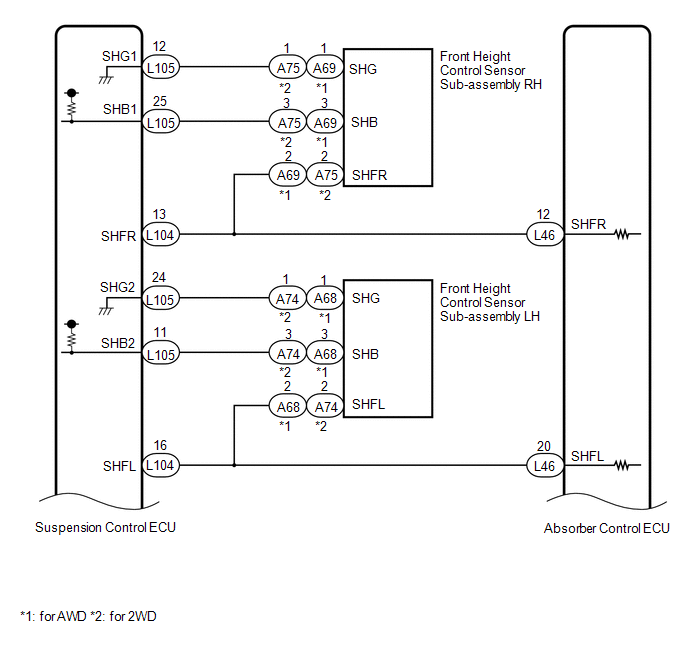

w/ Air Suspension System:

GTY820705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

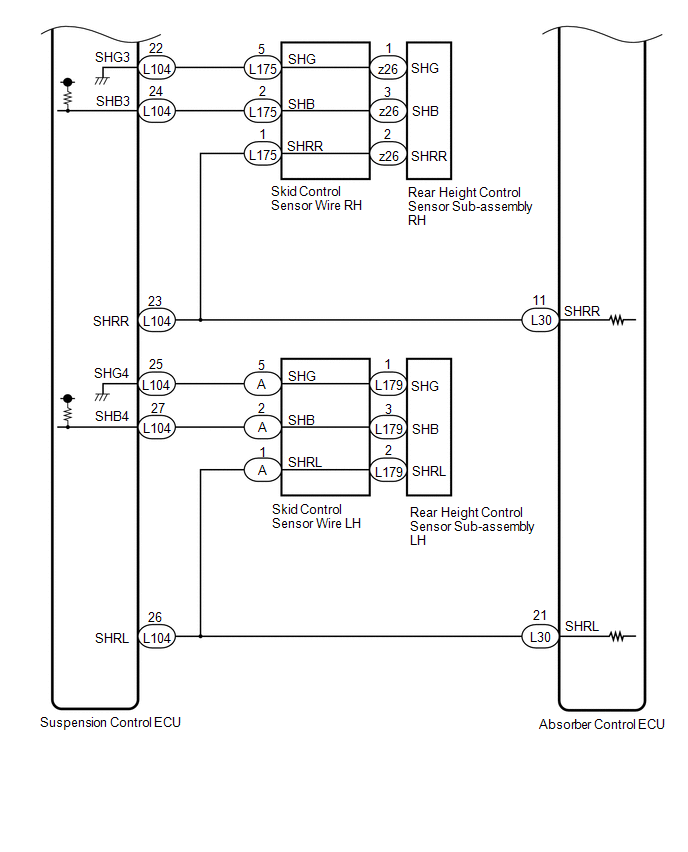

w/ Air Suspension System:

GTY824390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
