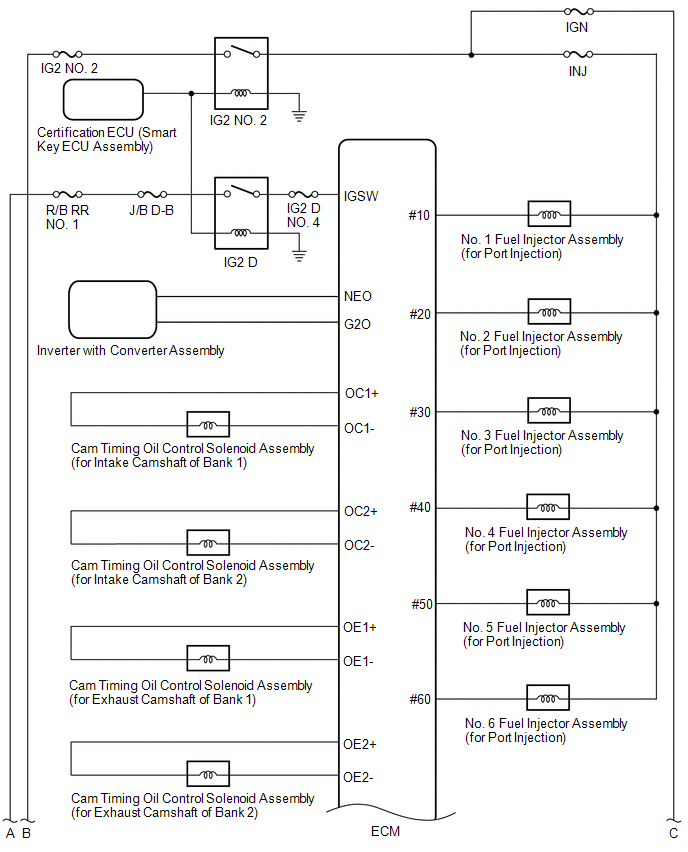

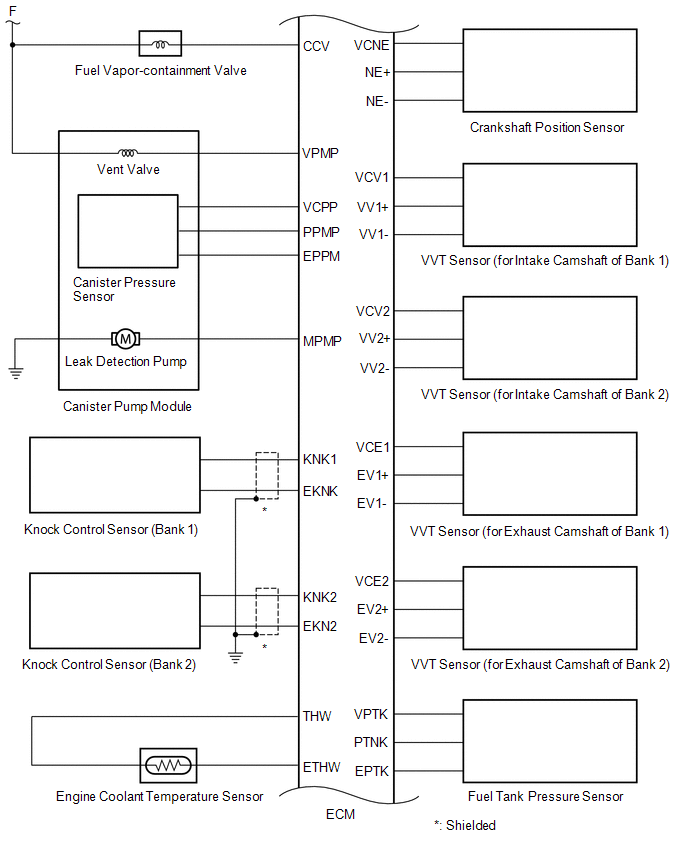

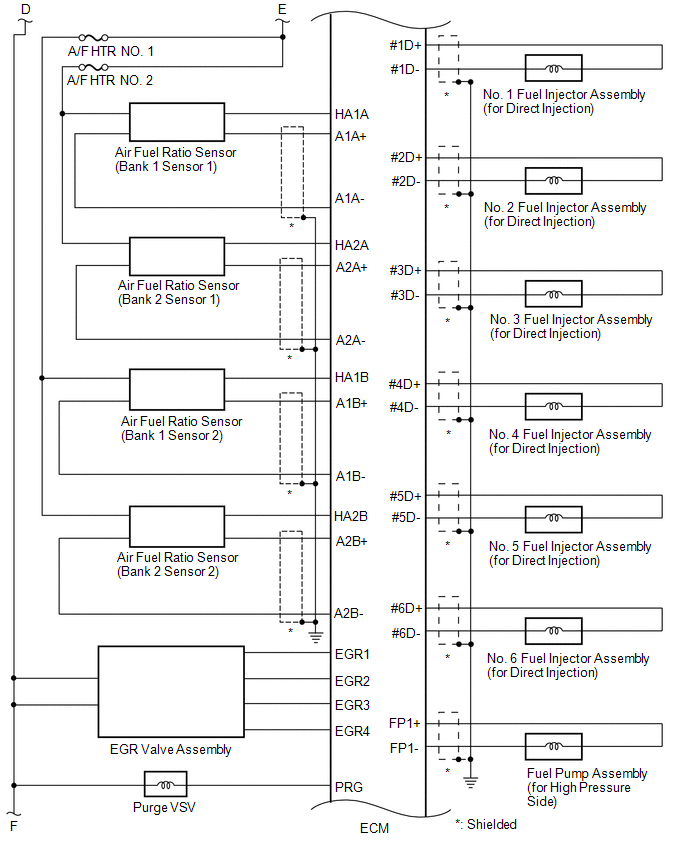

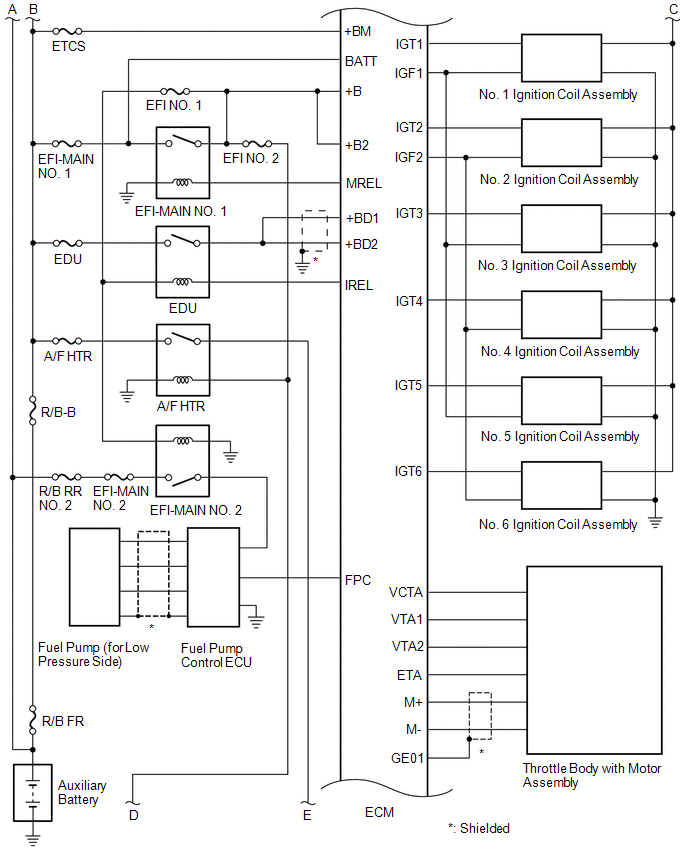

Home >> Lexus >> 2021 >> LS 500h AWD >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System - Diagnostics - Introduction (1 Of 6) >> SFI System >> System Diagram [10/2017 - 09/2019] >> System Diagram [10/2017 - 09/2019]
