Installation [12/2017 - 10/2020]: Procedure
- INSTALL REAR STEERING LINK ASSEMBLY

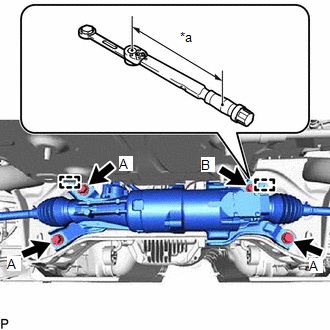

- Align the 2 guide pins with the rear suspension member sub-assembly and install the rear steering link assembly with the 4 bolts.
*a Torque Wrench Fulcrum Length Bolt A
Torque: 97 N.m (989 kgf/cm, 72 ft.lbf)
HINT:
Temporarily tighten the bolt B.
- Using a ball joint lock nut wrench, fully tighten the bolt B.
Specified tightening torque
Torque: 97 N.m (989 kgf/cm, 72 ft.lbf)
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [12/2017 - 10/2020]
- When using a ball joint lock nut wrench (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 255 mm (10.039 in.)): 61.1 N.m (623 kgf/cm, 45 ft.lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
- Engage the wire harness clamp and install the grommet.
- Install the nut.
Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)
- Connect the 2 connectors to the rear steering control ECU.
HINT:

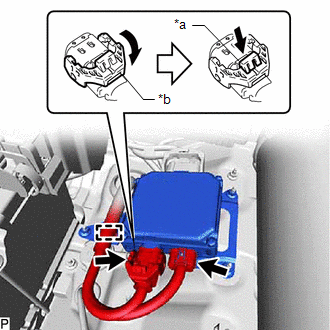

When connecting the connector with lock lever, return the lock lever to its original position and securely push in the lock of the lock lever as shown in the illustration.
*a Lock of the Lock Lever *b Lock Lever - Engage the clamp.
- Align the 2 guide pins with the rear suspension member sub-assembly and install the rear steering link assembly with the 4 bolts.
- INSTALL EXHAUST TAILPIPE ASSEMBLY
Refer to INSTALLATION [12/2017 - ]
- CONNECT REAR STEERING TIE ROD ASSEMBLY LH
- Install the rear steering tie rod assembly LH to the rear axle carrier sub-assembly with a new nut.
Torque: 118 N.m (1203 kgf/cm, 87 ft.lbf)
- Connect the skid control sensor wire LH to the rear steering tie rod assembly LH with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
- Install the rear steering tie rod assembly LH to the rear axle carrier sub-assembly with a new nut.
- CONNECT REAR STEERING TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
- INSTALL REAR WHEELS
Refer to INSTALLATION [12/2017 - 10/2023]
- INSTALL NO. 1 FLOOR UNDER COVER
Refer to PROCEDURE - Step 6
- INSTALL BATTERY CARRIER CATCH BRACKET SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- INSTALL LOWER INNER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 7
- INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 12
- INSTALL TOOL BOX
Refer to PROCEDURE - Step 8
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [12/2017 - 09/2018] , or refer to ADJUSTMENT [09/2018 - 10/2020]
- PERFORM DYNAMIC REAR STEERING SYSTEM CALIBRATION
Refer to CALIBRATION [12/2017 - 10/2023]
