Components [12/2017 - 10/2020]
Fig 1: Dynamic Rear Steering Actuator Replacement Components With Torque Specifications [12/2017 - 10/2020] (1 Of 5)
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |
Fig 2: Dynamic Rear Steering Actuator Replacement Components With Torque Specifications [12/2017 - 10/2020] (2 Of 5)
| *1 | BATTERY CARRIER CATCH BRACKET SUB-ASSEMBLY | *2 | LOWER INNER LUGGAGE COMPARTMENT TRIM COVER |
| *3 | LUGGAGE COMPARTMENT FLOOR MAT | *4 | TOOL BOX |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

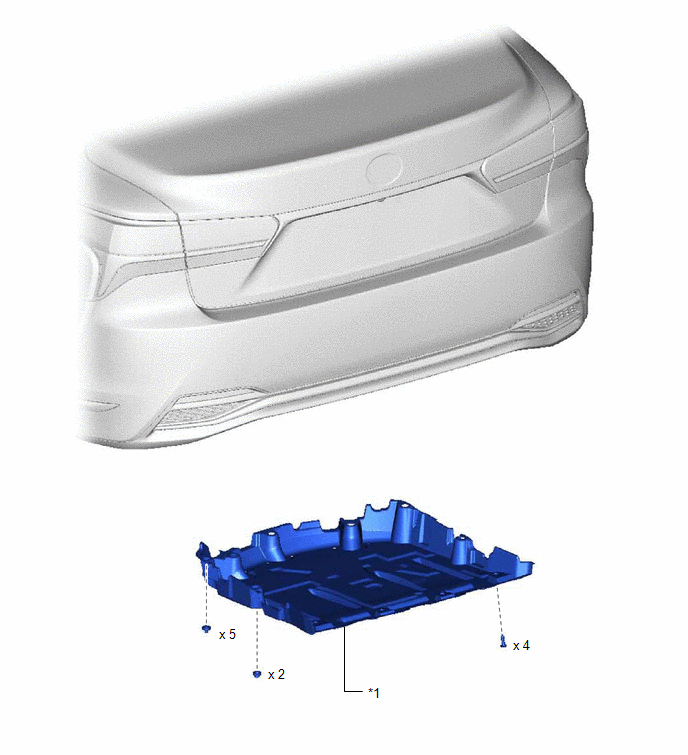

| *1 | NO. 1 FLOOR UNDER COVER | - | - |
Fig 4: Dynamic Rear Steering Actuator Replacement Components With Torque Specifications [12/2017 - 10/2020] (4 Of 5)
| *1 | REAR STEERING LINK ASSEMBLY | *2 | SKID CONTROL SENSOR WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with ball joint lock nut wrench | • | Non-reusable part |

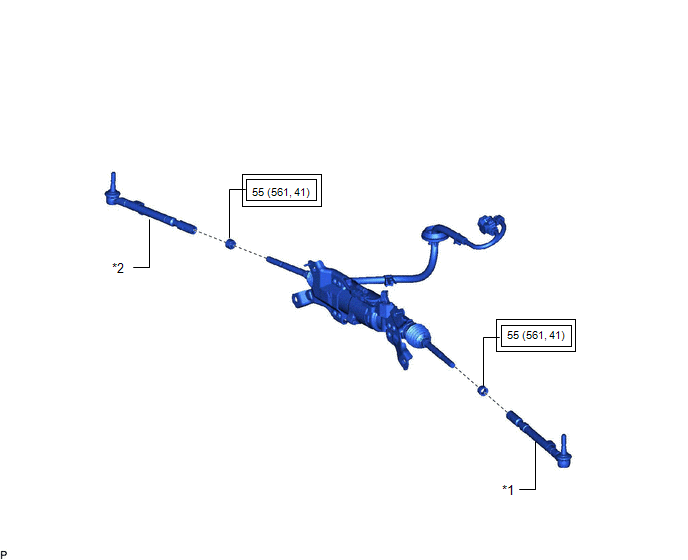

Fig 5: Dynamic Rear Steering Actuator Replacement Components With Torque Specifications [12/2017 - 10/2020] (5 Of 5)
| *1 | REAR STEERING TIE ROD ASSEMBLY LH | *2 | REAR STEERING TIE ROD ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |
