Components [12/2017 - ]

Fig 1: Tilt And Telescopic Manual Switch Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY	*2	NEGATIVE BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

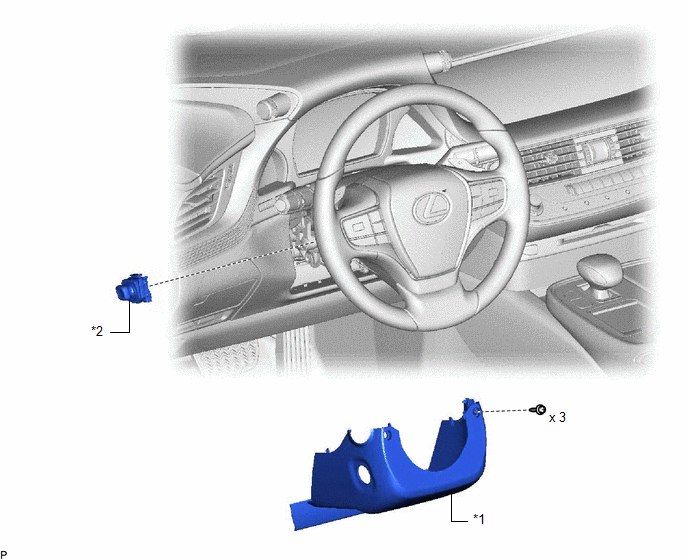

Fig 2: Tilt And Telescopic Manual Switch Replacement Components (2 Of 2)

LOWER STEERING COLUMN COVER

TILT AND TELESCOPIC SWITCH
