Components [12/2017 - ]

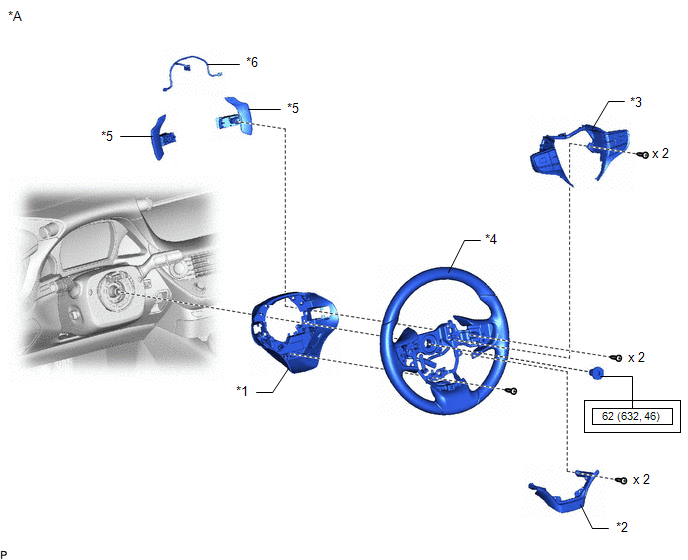

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Steering Heater	-	-
*1	LOWER STEERING WHEEL BOSS COVER	*2	NO. 1 STEERING WHEEL ORNAMENT
*3	STEERING PAD SWITCH ASSEMBLY	*4	STEERING WHEEL ASSEMBLY
*5	TRANSMISSION SHIFT SWITCH ASSEMBLY	*6	NO. 2 SWITCH WIRE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

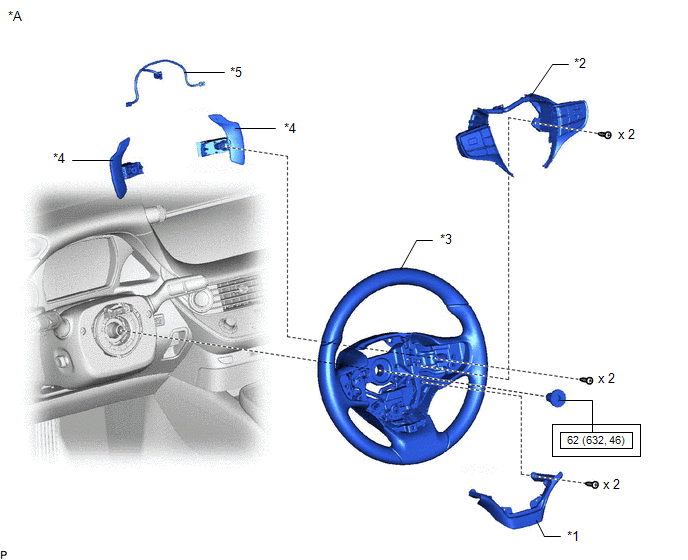

Fig 2: Steering Wheel Replacement Components With Torque Specifications (2 Of 2)

*A	w/ Steering Heater	-	-
*1	NO. 1 STEERING WHEEL ORNAMENT	*2	STEERING PAD SWITCH ASSEMBLY
*3	STEERING WHEEL ASSEMBLY	*4	TRANSMISSION SHIFT SWITCH ASSEMBLY
*5	NO. 2 SWITCH WIRE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-
