Removal [12/2017 - 09/2018]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [12/2017 - 10/2023]

  2. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [12/2017 - 09/2018]

  3. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.

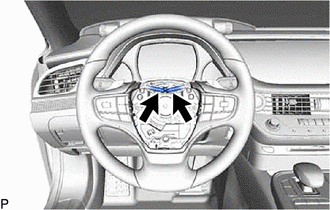

      GTY799009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the transmission shift switch.
    3. Remove the 2 screws.

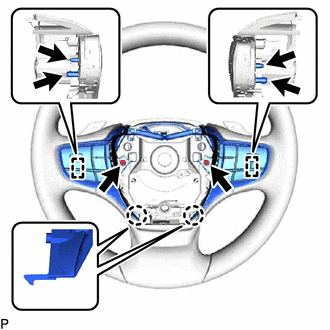

      GTY798943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws and 4 pins to remove the steering pad switch assembly from the steering wheel sub-assembly.
