Inspection [12/2017 - 10/2023]: Procedure
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.

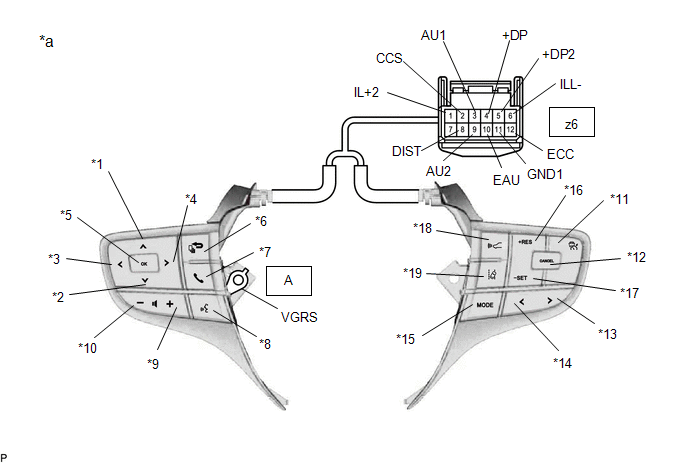

*1 Up *2 Down *3 Left *4 Right *5 Enter *6 Back *7 Tel *8 Voice *9 Volume+ *10 Volume- *11 Main *12 Cancel *13 Seek+ *14 Seek- *15 MODE *16 +RES *17 -SET *18 Distance Control *19 Lane Departure Alert Main - - *a Component without harness connected
(Steering Pad Switch Assembly)- - Standard Resistance
Tester Connection Condition Specified Condition z6-3(AU1) -z6-10(EAU) No switch pushed 95 to 105 kΩ Seek+ switch pushed Below 2.5 Ω Seek- switch pushed 313 to 345 Ω Volume+ switch pushed 950 to 1050 Ω Volume- switch pushed 2955 to 3265 Ω z6-9(AU2) - z6-10(EAU) No switch pushed 95 to 105 kΩ MODE switch pushed Below 2.5 Ω Tel switch pushed 950 to 1050 Ω Voice switch pushed 2955 to 3265 Ω z6-5(+DP2) - z6-10(EAU) No switch pushed 95 to 105 kΩ Left switch pushed Below 2.5 Ω Up switch pushed 313 to 345 Ω Down switch pushed 950 to 1050 Ω Right switch pushed 2955 to 3265 Ω z6-4(+DP) - z6-10(EAU) No switch pushed 95 to 105 kΩ Enter switch pushed Below 2.5 Ω Back switch pushed 313 to 345 Ω z6-8(DIST) - z6-12(ECC) No switch pushed 1 MΩ or higher Distance control switch pushed Below 2.5 Ω Lane departure alert main switch pushed 228 to 252 Ω z6-2(CCS) - z6-12(ECC) No switch pushed 1 MΩ or higher Main switch pushed Below 2.5 Ω Cancel switch pushed 228 to 252 Ω +RES switch pushed 599 to 661 Ω -SET switch pushed 1463 to 1617 Ω z6-11(GND1) - A-1(VGRS) Always Below 2.5 Ω HINT:
If the result is not as specified, replace the steering pad switch assembly.
- Check the illumination.
- Apply battery voltage between the terminals of the switch, and check the illumination condition of the steering pad switch assembly.
Standard
Tester Connection Specified Condition Battery positive (+) → z6-1 (IL+2) Battery negative (-) → z6-6 (ILL-) Illuminates HINT:
If the result is not as specified, replace the steering pad switch assembly.
- Apply battery voltage between the terminals of the switch, and check the illumination condition of the steering pad switch assembly.
- Measure the resistance according to the value(s) in the table below.
