Components [12/2017 - 10/2023]

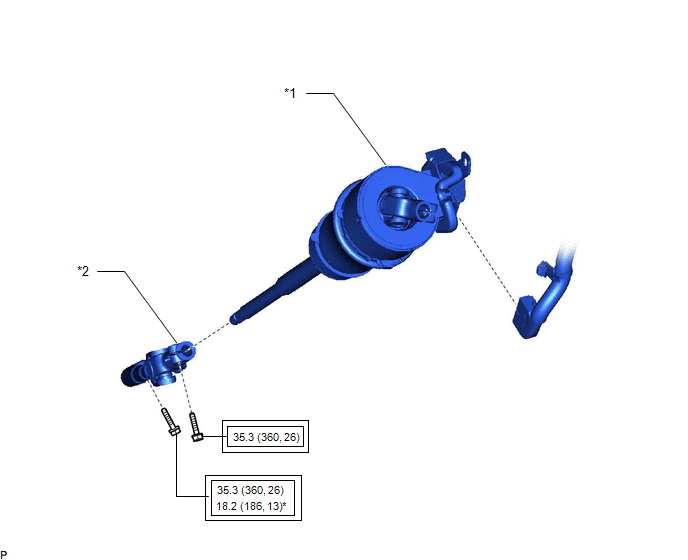

Fig 1: Steering Actuator Replacement Components With Torque Specifications [12/2017 - 10/2023]
GTY803291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING ACTUATOR ASSEMBLY *2 STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) * For use with SST and union nut wrench
