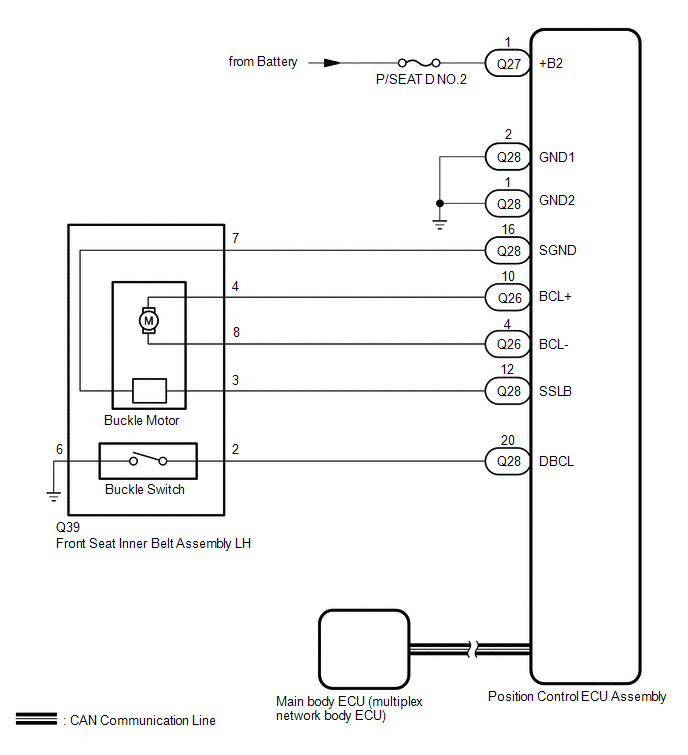

Driver Seat Easy Access Buckle Function does not Operate [12/2017 - 10/2023]: Wiring Diagram

GTY779056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
