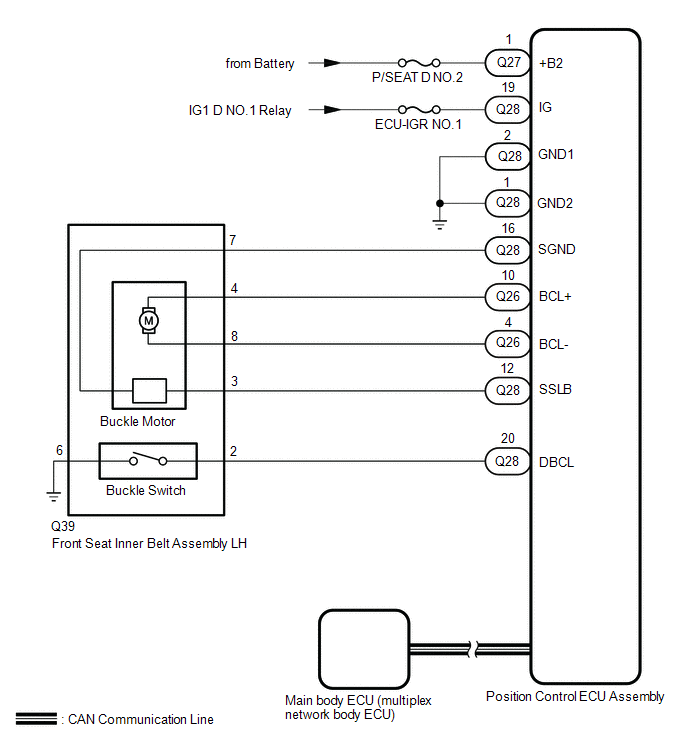

Driver Seat Easy Access Buckle Function does not Operate [10/2023 - ]: Wiring Diagram

GTY1234038

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
