Removal [12/2017 - 10/2020]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 3

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 14 [09/2018 - 10/2020]

  3. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 16 [09/2018 - 10/2020]

  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 21 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 21 [09/2018 - 10/2020]

  5. REMOVE INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 10/2020]

  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 23 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 23 [09/2018 - 10/2020]

  7. REMOVE ENGINE SWITCH (PUSH START SWITCH)
    1. Disconnect the connector.

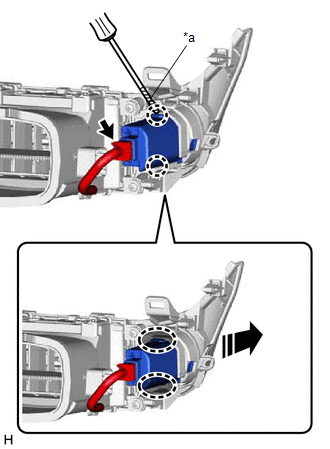

      GTY792846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction
    2. Insert a screwdriver at the position shown in the illustration and detach the claw and remove the engine switch (push start switch).

      HINT:

      Tape the screwdriver tip before use.
