Removal [10/2020 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 22 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]

  4. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

  6. REMOVE INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 21 [10/2023 - ]

  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 24 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

  8. REMOVE ENGINE SWITCH (PUSH START SWITCH)
    1. Disconnect the connector.

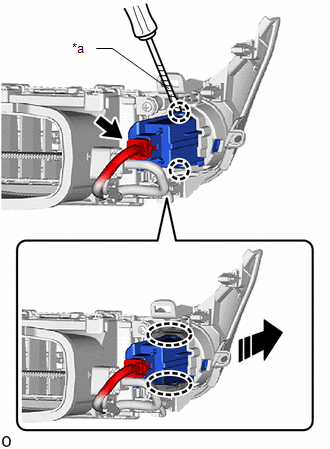

      GTY965546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction
    2. Insert a screwdriver at the position shown in the illustration and detach the claw and remove the engine switch (push start switch).

      HINT:

      Tape the screwdriver tip before use.
