Disassembly [12/2017 - ]: Procedure

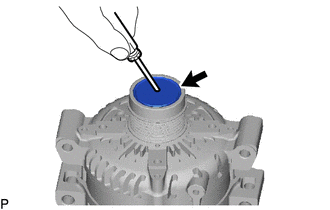

1. Using a screwdriver, puncture the center of the generator pulley cap and pry it off.
   NOTE:

   Do not reuse the generator pulley cap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure the generator drive end frame in a vise between aluminum plates.
   NOTE:

   Do not overtighten the vise.

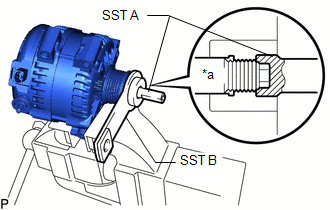

2. Install SST A and SST B to the generator pulley with clutch as shown in the illustration.
   • SST: 09820-63021

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Generator Rotor Shaft

   NOTE:

   Securely attach SST to the generator pulley with clutch and generator rotor shaft.

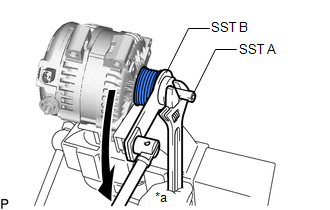

3. Using a wrench to hold SST A, turn SST B counterclockwise to loosen the generator pulley with clutch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Turn
   *a	Hold

   • SST: 09820-63021
   NOTE:

   Be careful as the generator pulley with clutch or generator rotor shaft may be damaged if the position of SST is not securely maintained while performing this operation.

4. Remove SST from the generator assembly.
5. Remove the generator pulley with clutch from the generator rotor shaft.
6. Remove the generator drive end frame from the vise.

1. Place the generator assembly on the generator pulley with clutch.

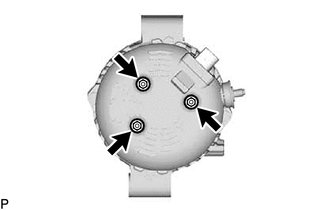

2. Remove the 3 nuts and generator rear end cover from the generator coil assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

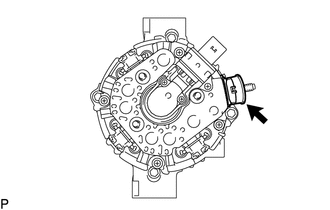

1. Remove the generator terminal insulator from the generator coil assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

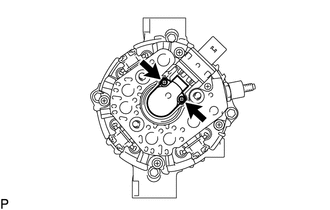

1. Remove the 2 screws and generator brush holder assembly from the generator coil assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

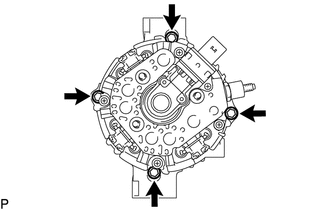

1. Remove the 4 through bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

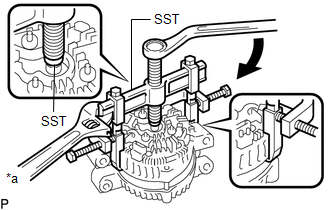

2. Using SST, remove the generator coil assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   	Turn

   • SST: 09950-40011
     1. 09951-04020
     2. 09952-04010
     3. 09953-04020
     4. 09954-04010
     5. 09955-04071
     6. 09957-04010
     7. 09958-04011
   NOTE:

   Apply grease to the threads and tip of the SST center bolt before use.

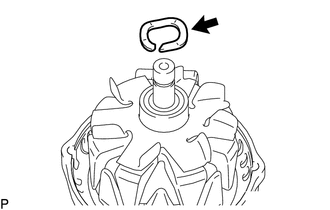

1. Remove the washer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the generator rotor assembly from the generator drive end frame.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Generator Rotor Assembly
   *2	Generator Drive End Frame

See step  4

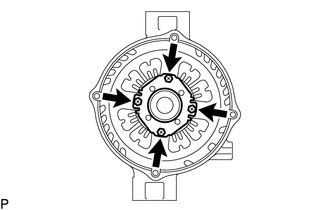

1. Remove the 4 screws and retainer plate from the generator drive end frame.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using SST and a hammer, tap out the generator drive end frame bearing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09950-60011
     1. 09951-00250
   • SST: 09950-70010
     1. 09951-07100
