Components [12/2017 - ]

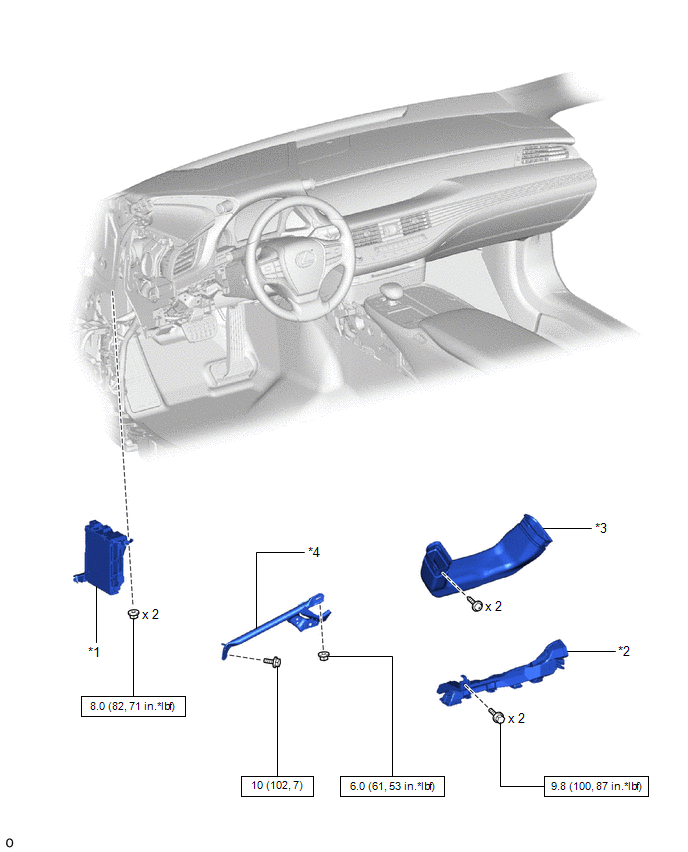

Fig 1: Main Body ECU Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU	*2	NO. 1 AIR DUCT SUB-ASSEMBLY
*3	NO. 1 HEATER TO REGISTER DUCT	*4	NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

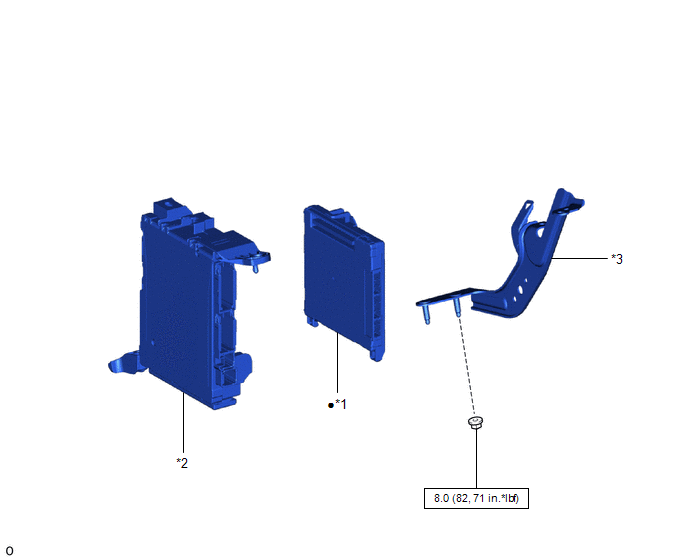

Fig 2: Main Body ECU Replacement Components With Torque Specifications (2 Of 2)

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
*3	WIRING HARNESS CLAMP BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
