Components [12/2017 - ]

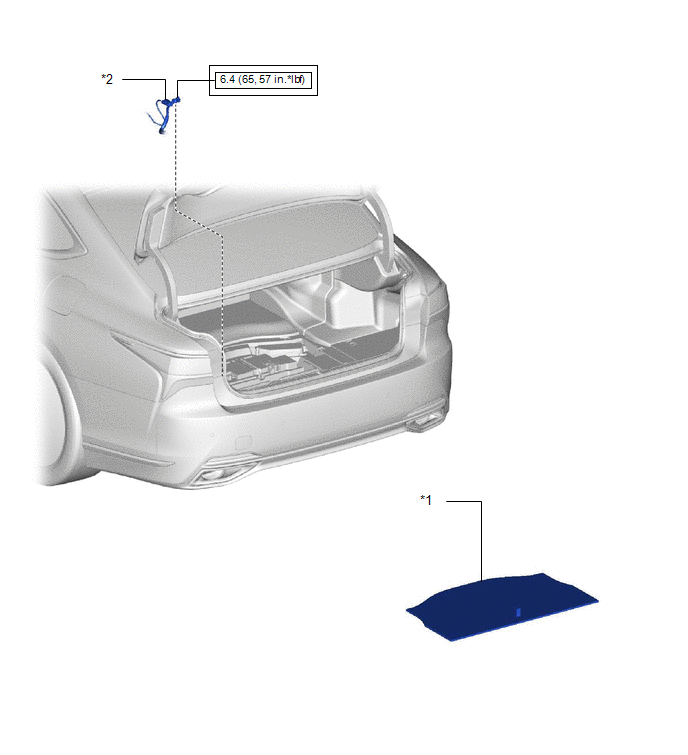

Fig 1: ID Code Box Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY	*2	NEGATIVE BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

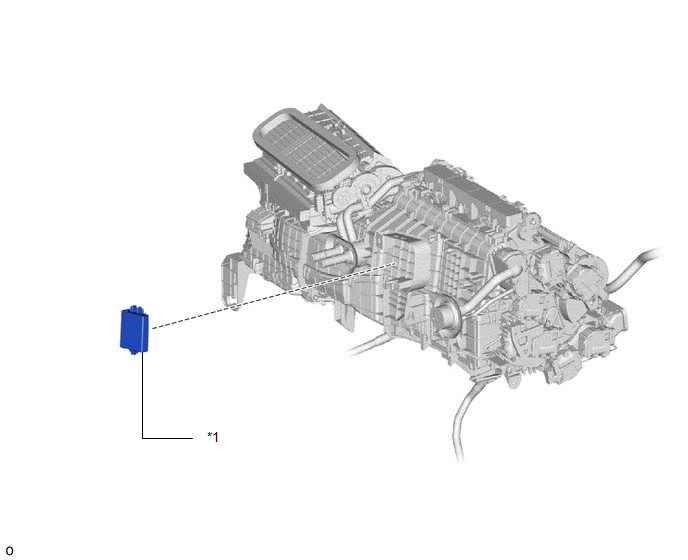

Fig 2: ID Code Box Replacement Components (2 Of 2)

ID CODE BOX (IMMOBILIZER CODE ECU)
