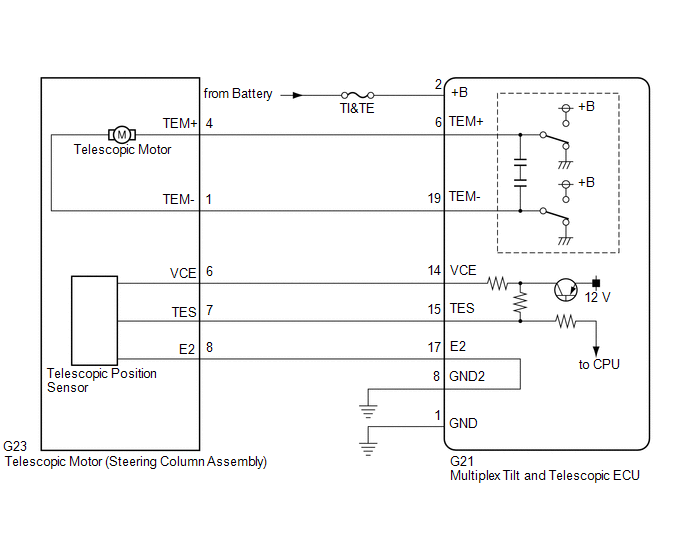

DTC B2611-96: Telescopic Position Sensor or Telescopic Motor Circuit Component Internal Failure [12/2017 - ]: Wiring Diagram

GTY797053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
