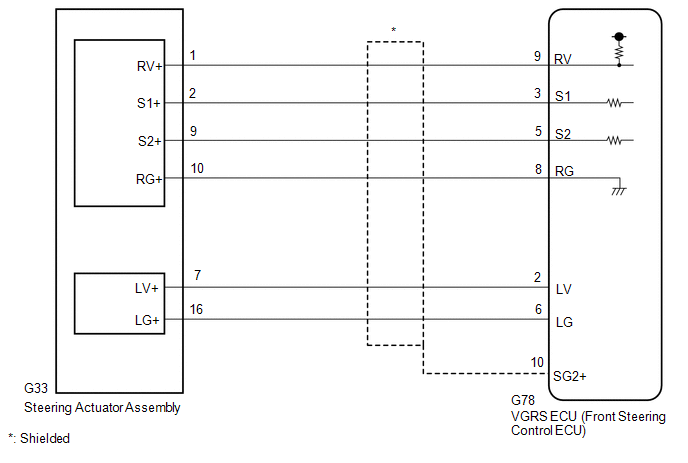

DTC C15A3: Motor Rotation Angle Not Detected; DTC C15C5: Motor Rotation Signal Not Detected [12/2017 - 10/2023]: Wiring Diagram

GTY794219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
